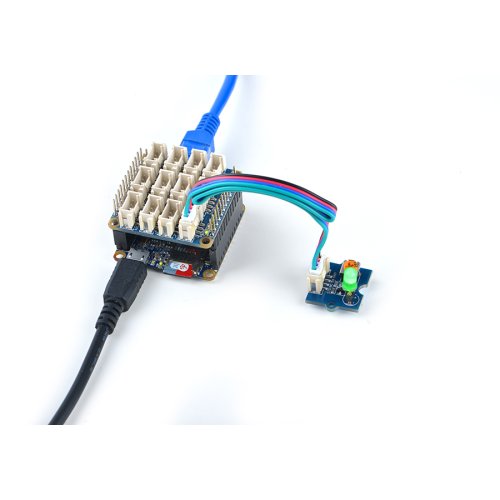

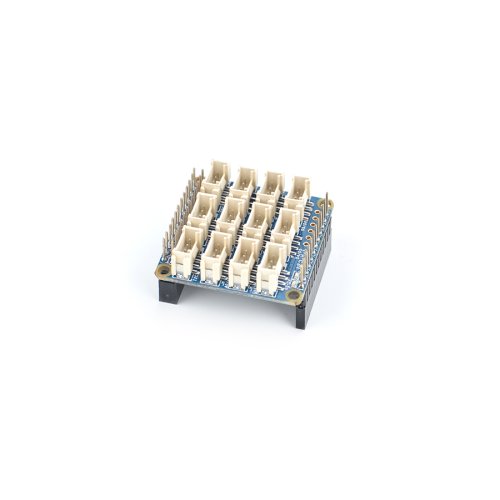

The NanoHat Hub is a plug & play extension board.The NanoHat Hub communicate with the NanoPi NEO/AIR via its I2C interface. It acts as an interface between the NanoPi NEO/AIR and various external modules. The NanoHat Hub has 3 I2C interfaces,3 analog interfaces,2 UART interfaces and 4 digital interfaces (among which D3 and D5 support PWM).

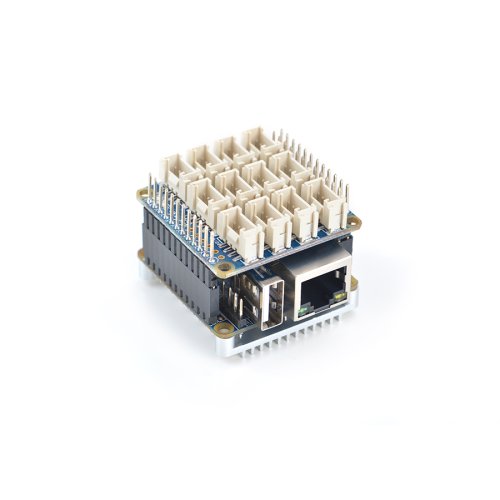

The NanoHat Hub can be mounted on the NanoPi NEO/AIR with male connectors. All the BakeBit modules can be connected to the NanoHat Hub with a 4-pin cable.
Specifications:
- Compatible with NanoPi NEO/AIR
- 3 x 2.0mm pitch 4Pin I2C Interface
- 3 x 2.0mm pitch 4Pin Analog Interface
- 1 x 2.0mm pitch URAT-NEO Interface
- 1 x 2.0mm pitch URAT-Hub Interface
- 4 x 2.0mm pitch Digital Interface
- PCB dimension (mm): 40 x 40
Package Includes:
- 1 x NanoHat Hub
NanoHat Hub
- Brand: FRIENDLYARM
- Product Code:FARM-NanoHat-Hub
- Reward Points:18
- Availability:In Stock
- रo 2,181.82
-
रo 1,832.54
- Ex Tax:रo 1,553.00
- Price in reward points:1849
-
- 8 or more रo 2,164.12
- 15 or more रo 2,146.42
- 40 or more रo 2,128.72
- 75 or more रo 2,111.02
