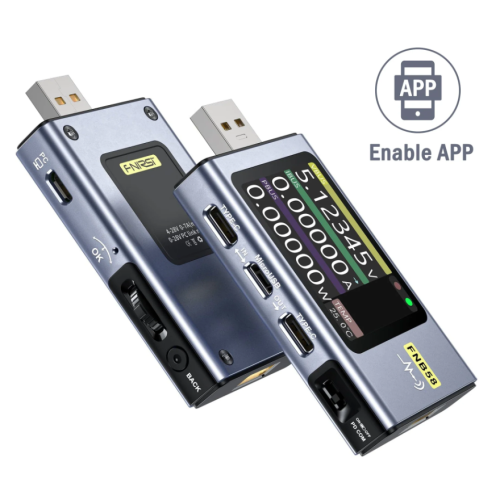

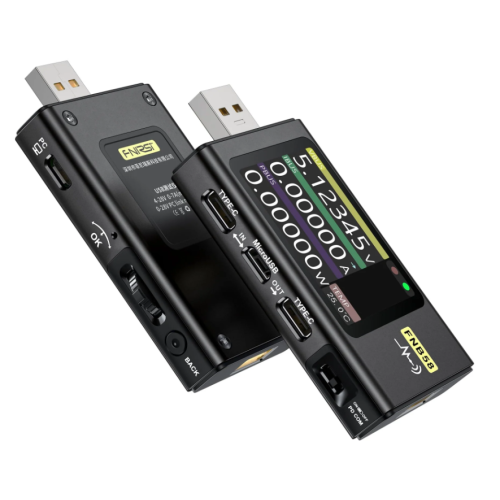

The FNB58 USB tester is a high-reliability, high-safety USB voltage andcurrent detection meter and a mobile communication terminal fast chargingtrigger.It has a 2.0-inch full-color ultra-wide viewing angle TFT LCD display, integrated USB-A, Micro-USB, Type-C interface. Use external 16-bit ADC, PD protocol physical chip. It can be used to measure the power supply or power consumption of products such as USB interfaces, mobile phone chargers, and U disks; it can be used to measure the charging power of mobile phones and the input and output of mobile power supplies; it can be used to test the fast charging protocol of chargers.

Specifications:

• Brand: FNIRSI
• Model: FNB58
• Monitor Voltage: 4~28V
• Monitor Current: 0~7A
• Monitor Power: 0~140W
• D+/D- Voltage: 0~3.3V
• Load Equivalent Intemal Resistance: 0~9999.9Ω
• Equipment Temperature:: °C/°F
• Capacity: 0~9999.99Ah
• Energy Used: 0~9999.99Wh
• Cable Resistance: 0~9999.9Ω
• Equipmnt Running Time: 99days 23:59:59
• Record Time: 99days 23:59:59

Package Includes:

• 1 x FNB58 USB tester (Bluetooth Version optional)
