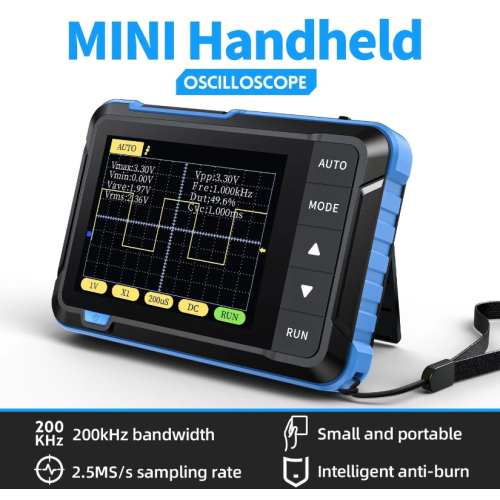

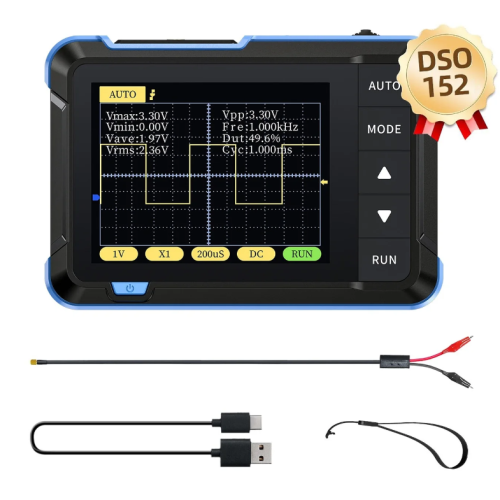

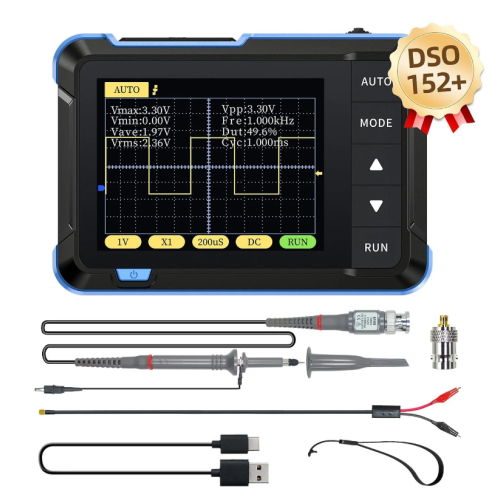

The DSO152 is a compact, entry-level oscilloscope, designed for basic signal analysis and maintenance tasks. It provides essential oscilloscope functions in a lightweight and easy-to-carry design.

It has a realtime sampling rate of 2.5MS/s, abandwidth of 200KHz, and complete trigger functions (single, normal, and automatic).

It can be used freely for both periodic analog signals and nonperiodic digital signals, and can measure voltages up to ±400V.

Equipped with an efficient one-key AUTO, it can display the measured waveform without cumbersome adjustments.

Equipped with a 2.8-inch 320*240 resolution high-definition LCD screen.

Built-in 1000mAh high-quality lithium battery, can be used continuously for about 4 hours after fully charged.

Features:

Portable 2.8" TFT Handheld Oscilloscope for beginners, hobbyist
DSO oscilloscope: 2.5MS/s, 200KHz bandwidth, ±400V voltage range.
High-definition 320*240 LCD, Type-C interface.
Finished assembly, lightweight, perfect for maintenance.
Versatile trigger functions: single, normal, automatic.
Suitable for analog and digital signals.
Convenient one-key AUTO adjustment, quickly generate waveforms with ease.
Displays waveform without complex setup.
Battery Life: Built-in 1000mAh lithium battery with 4 hours of use per charge.
Long press AUTO for baseline calibration.
Recommended Use: Perfect for basic maintenance and educational labs requiring fundamental signal analysis.

Parameter Index:

Brand : FNIRSI : Model : DSO-152
Channel : 1 : Sampling Rate : 2.5MS/s
Bandwidth : 200KHz : Vertical Sensitivity : 10mV/Div - 20V/Div (Progress according to the 1-2-5 way)
Time Base Range : 10μs/Div - 50s/Div (Progress according to the 1-2-5 way) : Voltage Range : X1:±40V (Vpp:80V)
