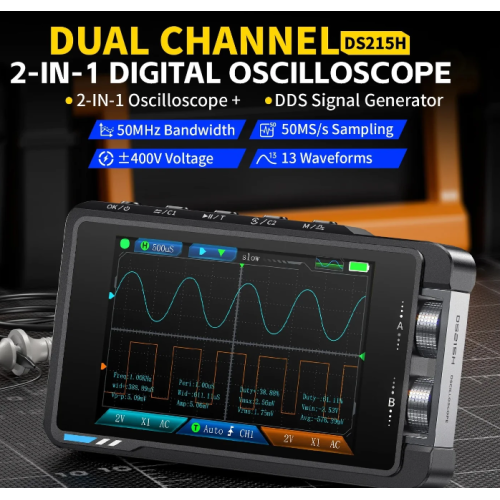

Key Features:

High-precision measurement: The FNIRSI-DS215H offers high precision with a sampling rate of up to 250MS/s and a 50MHz analog bandwidth, ensuring accurate measurements for various applications.

Wide voltage protection: Supports peak voltage measurements up to ±400V, offering reliable and safe performance in high-voltage scenarios.

Waveform storage: The device supports screenshot saving and viewing, making data analysis more convenient and efficient.

Signal generator functionality: It features 13 waveform outputs with a frequency range of 0-50 KHz, adjustable by a 1Hz step. The output parameters, including frequency, amplitude, and duty cycle, are fully adjustable to meet various needs.

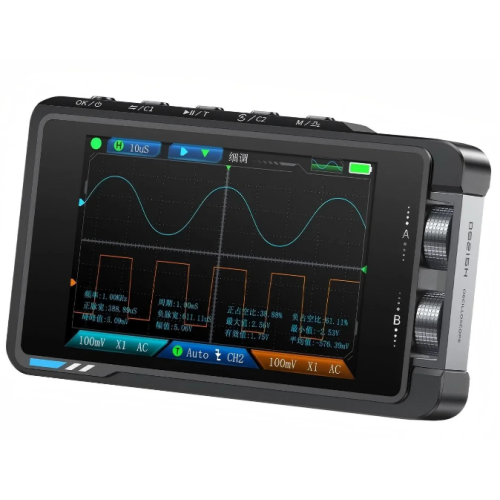

Portable design: The device is equipped with a 3.5-inch display (480×320 resolution) for clear and intuitive visuals. Its compact and lightweight design makes it ideal for mobile use.

Long battery life: Powered by a 1500mAh rechargeable lithium battery, it supports up to 4 hours of continuous operation, ensuring long-lasting performance for on-the-go use.

Ideal for professionals: The FNIRSI-DS215H is designed to provide powerful and flexible features, offering users a portable and efficient tool for maintenance, R&D, and testing tasks.

Specifications:

Basic Parameters:

Oscilloscope Parameters:

Signal Generator Parameters:
