The interface and handle have been upgraded from 5-pin to 7-pin, improving stability, signal transmission capabilities, and enhancing compatibility with more applications.

The upgraded handle interface is not compatible with the older model.

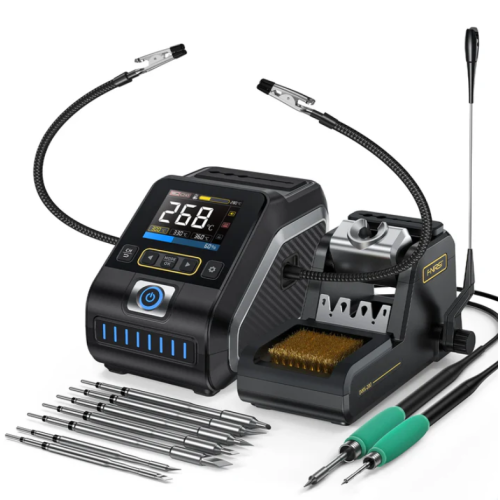

DWS-200 is a 200W high-power precision soldering station launched by FNIRSI. It is a commonly used hand tool in electronic soldering processes. This product has a built-in high-power pure copper transformer, suitable for 100-240V voltage input, with a maximum power of 200W. Supports conversion from ℃ to ℉, adjustable temperature range 100℃~450℃/212℉~842℉. It also supports preset 3 sets of temperature values and can be connected to a soldering iron stand for standby induction. Use dynamic temperature curve mode to try monitoring data.

Specifications:

• Brand: FNIRSI
• Model: DWS-200
• Screen: 2.8 lnch TFT Screen
• Temp Range: 100°C~450°C / 212°F~842°F
• Peak Power: 200W(Max)
• Input Voltage: 100V-240V(AC)
• Input Fuse: 3A
• Handle Type: F210 / F245 Handle
• Dimension: 156*96*103mm
• Net Weight: 475g (Only Host)
• Plug Type: EU or US Plug

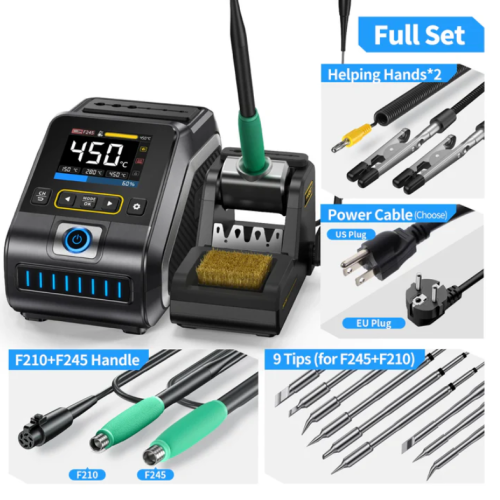

Package Includes:

• DWS-200 Full Set:
• 1 x Host Device
• 1 x Soldering Iron Stand
• 1 x F245 Handle
• 1 x F210 Handle
• 9 Tips (B/KU/K/C2/I/JS for F245, K/I/IS for F210)
• 2 x Helping Hands
• 1 x Power Cable
• 1 x Connecting Cable
