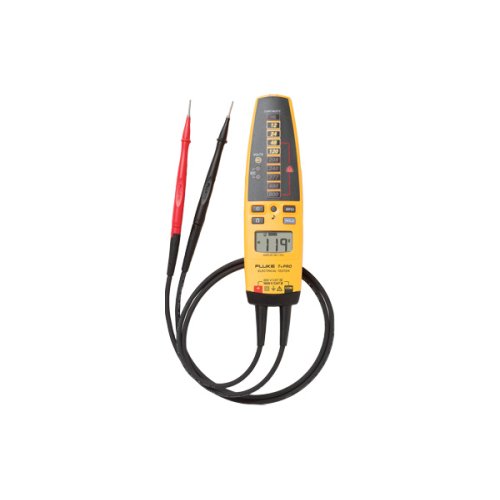

Safer than solenoid testers and fully compliant with NFPA 70E*, the T+Pro helps electricians and technicians work safer by indicating the presence of voltage even when the batteries are dead due to its solid-state design. Additional functionality such as a GFCI trip, easy to read LCD screen, resistance measurement up to 9.99 kOhms and a flashlight make the T+Pro the first voltage tester that electricians reach for.

Detect live voltage even when the batteries are dead

Not only shows the presence of voltage but indicates the level even when the batteries are dead
Fully compliant with NFPA 70E*

3 forms of AC/DC voltage indication: light, sound, and vibration for added user protection

Three voltage indications ensure that the user will be alerted to the presence of voltage even in dark or noisy environments.
The audible indication can be optionally disabled at the push of a button

Backlit LCD display and hold function for easier viewing in hard-to-test areas

A bright backlit display allows for easy voltage or resistance readings in dark environments
An included HOLD function will freeze the display for even easier reading

Key safety features:

Solid-state tester design will detect voltage even when the batteries are dead
CAT IV 600 V, CAT III 1000 V
Complies with NFPA 70E*
CSA Approved

Additional product features:

GFCI trip for testing outlet GFCI circuits
Rotary field indicator
Built in flashlight for measuring point illumination
Convenient probe storage on the back
2 year warranty

Key Features:

Detect live voltage even when the batteries are dead
3 forms of AC/DC voltage indication: light, sound, and vibration for added user protection and convenience
Backlit LCD display and hold function for easier viewing in hard-to-test areas

Specifications
Temperature	Operating	-10°C to 55°C (14°F to 131°F)
	Storage	-30°C to 60°C (-22°F to 140°F)
Relative Humidity	90%	0°C to 30°C (32°F to 86°F)
	75%	30°C to 40°C (86°F to 104°F)
	45%	40°C to 50°C (104°F to 122°F)
Altitude	Operating	2,000 m (approx. 6,561.6 ft)
	Storage	10,000 m (approx. 32,808.4 ft)
Battery Type/Life	AAA (2); 40 hours
Shock, Vibration	Sinusoidal vibration per MIL-PRF-28800F for a Class 2 instrument
Safety	ISA-82.02.01 (IEC 61010-1 Mod) Second Edition, CAN/CSA-C22.2 No. 61010-1 Second Edition, IEC 61010 - 1 to 1000 V CAT III/600 V CAT IV Compliance to NFPA 70E1
AC Bandwidth	45 Hz to 66 Hz
Maximum Working Voltage	1000 V AC/DC
Maximum Measurable Voltage	600 V AC/DC
Duty Cycle	Indefinitely for voltages up to 240 V
	For voltages between 240 V and 600 V the duty cycle is 30 s on / 300 s off
	For voltages above 240 V the tester must connect to a voltage source only for a MAXIMUM of 30 s and then disconnect for a MINIMUM of 300 s
Voltage Hazard LED	LEDs turn on at voltages > 30 V AC/DC ±35%
LED Voltage Indication Levels	12 V, 24 V, 48 V, 120 V, 208 V, 240 V, 277 V, 480 V, 600 V
LEDs	LEDs turn on between 90% and 100% of the indicated voltage on the LED, except for the 12 V LED which turns on between 50% and 100%
LCD Accuracy	AC voltage	±(3% rdg + 2 digits)
	DC voltage	±(2% rdg + 2 digits)
	Resistance	±(5% rdg + 3 digits)
LCD Resolution	0.1 V for voltages < 50 V, 1 V for voltages ≥ 50 V
	0.01 kΩ for resistance measurement
GFCI Test Current	100 V - 150 V @ 6 mA - 9 mA AC, 150 V - 240 V < 12 mA
Standard Input Test Current	< 5 mA
Size (H x W x L)	1.3 x 2.15 x 7.6 in (3.3 x 5.46 x 19.3 cm )
Weight	9.9 oz (0.28 kg)
1. When used properly per Article 110.9 Use of Equipment (A) Test Instruments and Equipment.
