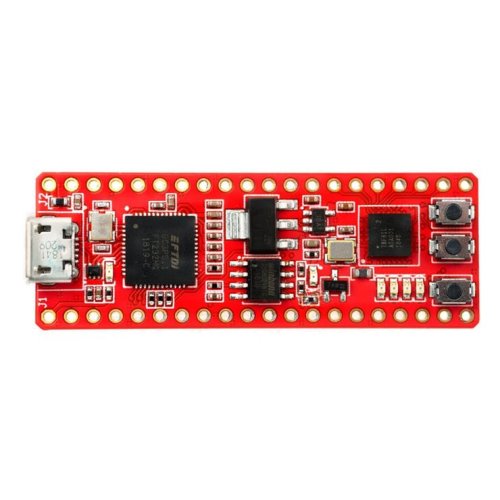

FireAnt is the first third-party development board for the Efinix Trion product family. It provides an easy-to-use development platform for FPGA makers and hobbyists. Powered by the Efinix Trion T8, FireAnt is ready to use with just a PC and no extra components required. The breadboard- friendly design allows for fast application deployment with sensors, peripherals, or other interfaces. It’s the perfect solution for manufacturers to prototype their projects or digital design students to learn FPGA development using the new Efinix platform quickly. The power/performance/size advantages of the Trion T8 FPGA also make it ideal for edge IoT applications.
Features and Specifications :
Efinix Trion T8 FPGA3
- 7384 LE counts
- 8 embedded multipliers
- 1 low-power oscillator
- 1 PLL
- 122.88 kbit internal RAM
- Package size: BGA-81 5x5 mm
- USB 2.0 Hi-Speed(480 Mb/s)
- JTAG (with exposed pin in bottom layer via external JTAG programmer)
Comparison :
| FireAnt | Fomu | TinyFPGA BX | iCEBreaker | |
|---|---|---|---|---|
| FPGA: | ||||
| Model | T8F81C2 | ICE40UP5K | ICE40LP8K | ICE40UP5K |
| LUTs | 7284 | 5280 | 7680 | 5280 |
| Internal RAM (kbits) | 128 | 1152 | 128 | 1152 |
| Multiplier | 8 | 8 | 0 | 8 |
| PLL | 1 | 1 | 1 | 1 |
| Features: | ||||
| User IO Count | 36 | 0 | 41 | 34 |
| LED (Configurable) | 6 (4) | 1 (RGB x1) | 2 (2) | 4 (2) |
| Button (Configurable) | 3 (2) | - | 1 (0) | 1 (1) |
| USB Programming | Yes | Yes | Yes | Yes |
| Breadboard compatible | Yes | No | Yes | No |
| Price | $32 USD | $49 USD | $38 USD | $69 USD |
- 1 x FireAnt FPGA dev board
FireAnt FPGA dev board
- Brand: Crowd Supply
- Product Code:CS-FireAnt
- Reward Points:52
- Availability:In Stock
-
रo 6,133.64
- Ex Tax:रo 5,198.00
- Price in reward points:5198
-
- 3 or more रo 6,084.08
- 5 or more रo 5,705.30
- 13 or more रo 5,358.38
- 25 or more रo 5,220.32
