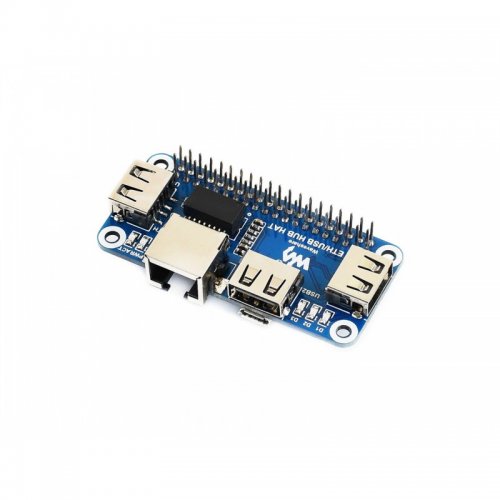

This Raspberry Pi hub HAT provides more USB capability to your Pi, plus a RJ45 Ethernet port, which is great when you need a stable wired Ethernet connection.

It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero W / Zero WH.

Features:

• 3x USB ports, compatible with USB2.0/1.1
• 1x RJ45 10/100M port, based on the RTL8152B Ethernet chip
• Onboard multi indicators, for monitoring the status of power, Ethernet, and each USB port

Specifications:

• Operating voltage: 5V
• Dimension: 65mm × 30mm
• Mounting hole size: 3.0mm
• Raspberry Pi GPIO interface: for connecting Raspberry Pi
• USB extended ports: USB1~USB3
• RJ45 port: 10/100M Ethernet interface
• USB HUB interface (bottom): for connecting the HUB to the Raspberry Pi USB port
• Raspberry Pi Zero / Zero W / Zero WH: connected via Micro USB connector
• Raspberry Pi B+ / 2B / 3B / 3B+ /4B: connected via Micro USB cable
• TS8121A: Ethernet wave filter
• RTL8152B: 10/100M Ethernet chip
• FE1.1S: USB HUB chip
• LED indicators:
• PWR: power indicator
• ACT: Ethernet indicator
• D1~D3: dedicated indicator for USB1~USB3 respectively

Documents:

• Wiki

Package Includes:

• 1 x ETH/USB HUB HAT
• 1 x Micro USB connector
• 1 x Micro USB cable
• 1 x RPi screws pack (2pcs)
