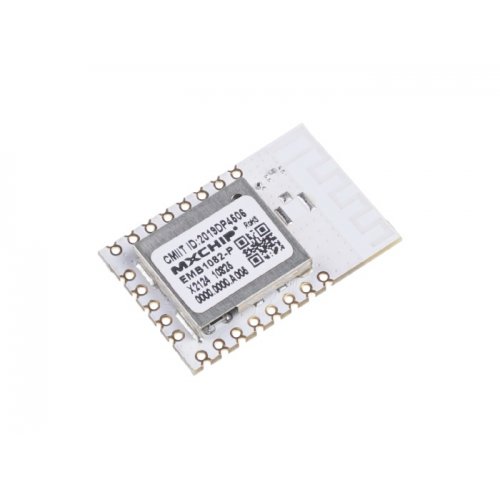

EMB1082 is an embedded BLE module by MXCHIP. It integrates a BLE5.0 single mode SoC, including ARM Cortex-M4F Core, BLE/2.4G Radio, 160KB RAM, 512KB Flash and rich peripherals. EMB1082 uses half-hole package which is easy for soldering, and also DIP package.

Features:

• Powerful CPU: ARM Cortex-M4F Core 20MHz with160KB RAM and 512 KB Flash in chip, and support external flash up to 8Mbyte.
• Advanced Bluetooth: Support Bluetooth 5.0 (BLE single mode). Support BLE Master/ Slave mode
• Wide Working Voltage: DC 3.0-3.6V
• Maximum transmission rate up to 72.2 Mbps with 20 MHz bandwidth.
• Wi-Fi Features

• Operating Temperature：-40℃ to +105℃
• Operating Voltage: 2.7 V～3.3 V
• Antenna: PCB antenna or IPEX connector (Optional)
• Length x Width x Height: 2.400 x 2.600 x 0.300 (cm)
• Weight: 0.003 kg

Applications:

• Intelligent Lighting
• Health Care
• Intelligent Household Appliances
• Intelligent Electricians
• Portable Devices

Package Includes:

• 1 x EMB1082 BLE Module - Support MXMESH
