Each Easy Driver can drive up to about 750mA per phase of a bi-polar stepper motor. It defaults to 8 step microstepping mode.(So if your motor is 200 full steps per revolution, you would get 1600 steps/rev using Easy Driver.) It is a chopper microstepping driver based on the Allegro A3967 driver chip. For the complete specs of the design, read the A3967 datasheet. It has a variable max current from about 150mA/phase to 750mA/phase. It can take a maximum motor drive voltage of around 30V, and includes on-board 5V regulation, so only one supply is necessary.
Above text and all designs are from Brian Schmalz's Project page .

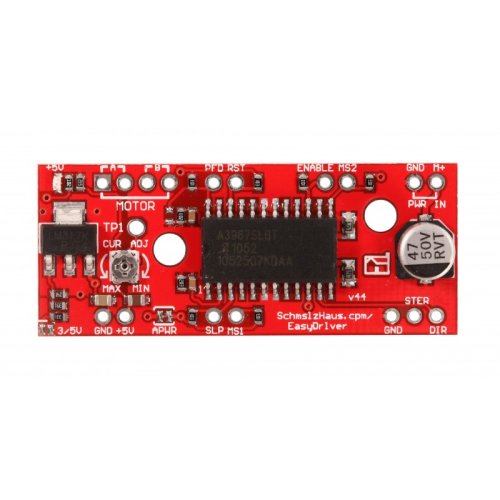

Stepper Motor Driver - Easy Driver A3967
Product Code:PRC-Stepper-Motor-Driver-A3967 Reward Points:2 Availability:Out Of Stock
रo 247.80
Ex Tax:रo 210.00 Price in reward points:225
