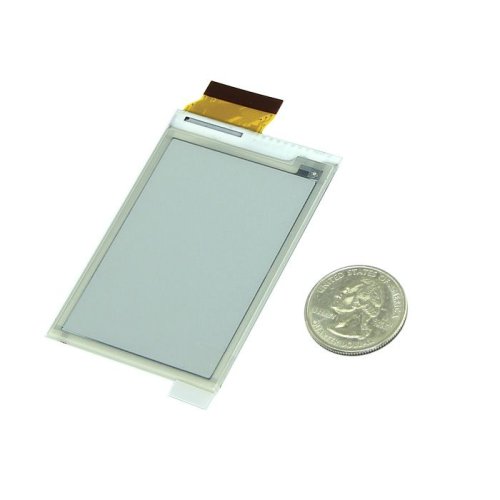

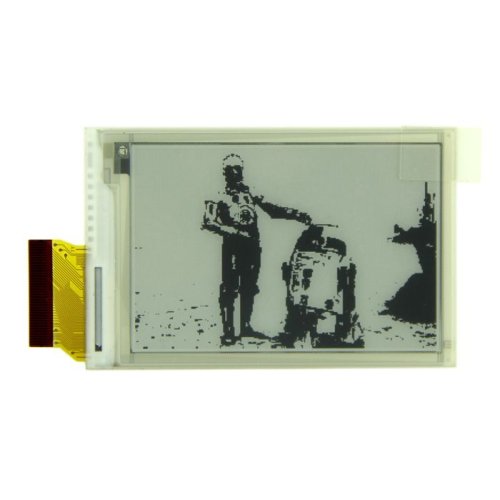

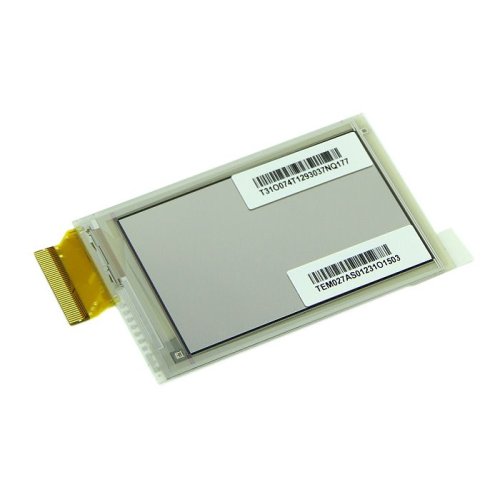

This is a 2.7’’ a-Si, active matrix TFT, Electronic Paper Display(EPD) panel. By combing the high resolution (117 dpi) of a TFT backplane and the dependability/maturity of E Ink technology, this display offers its user the freedom to display any image with excellent definition and contrast. It is ideal for mobile devices requiring slightly larger and higher-resolution displays or electronic price tags for higher-end data rich products. The small and thin form factor makes it easy to design it into a variety of applications.
Features
- Ultra low power consumption
- Super wide viewing angle - near 180°
- Extra thin & light
- High Resolution
- SPI interface
- RoHS compliant
Specification
- Outline(mm): 70.42(H) x 45.80(V) x 1.0(T)
- Resolution: 264 x 176
- Contrast Ratio: 7:1
- Interface: SPI
- Operation Temperature: 0~50°C
- Storage Temperature: -20~60°C
- Refresh Time(room temp.): 3 sec
- Pixel Pitch(mm): 0.217 x 0.217(117dpi)
- Pin Number: 40 pins(Connector STARCONN 089H40 or Compatible)
- Input Voltage: 3.0V
- FPC: 0.5mm pitch with stiffener
- FPL: V110
Documents
e-Paper Panel - 2.7 inch
- Product Code:Seeed-E-Paper-Panel-2.7
- Reward Points:28
- Availability:In Stock
-
रo 3,287.48
- Ex Tax:रo 2,786.00
- Price in reward points:2786
-
- 40 or more रo 2,692.76
- 75 or more रo 2,544.08
