The DX-M1 M.2 is more than silicon, it is the declaration that intelligence belongs everywhere, not just in the cloud. At only 1–5W, it delivers the force of 200 GPU-class TOPS, transforming the edge from a passive receiver into an active decision-maker. at just 1-5W through breakthrough efficiency design.

Through its innovative memory design, DX-M1allows multiple AI models to work side by side, not as a luxury but as a new standard.

Specifications:

• Product Details

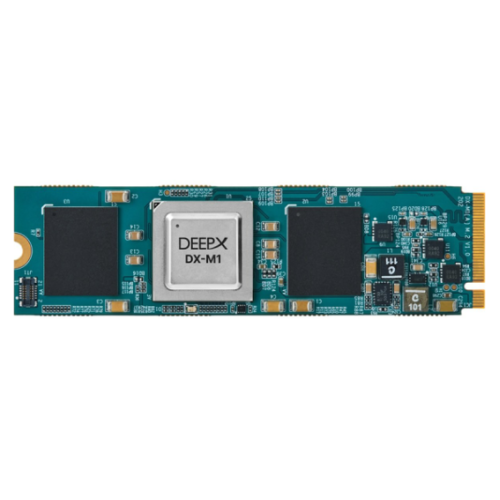

• Name: DX-M1 M.2 2280 M key | W/ Heatsink
• SKU: RE-OTDEEP2280M1
• General
• IC: DeepX DX-M1
• Memory: 4GB
• Interface: PCIe Gen3 x4 (Supports Gen 1/2/3 & x1/x2/x4)
• Form Factor: M.2 2280 M Key
• Support Framework: Ultralytics, TensorFlow, PyTorch, ONNX, Keras
• Compatible OS: Windows 11/10
• Debian-based Linux (Ubuntu 24.04/22.04/20.04 LTS)
• Yocto Project
• Compatible UP product: Products with 2280 slot
• Environmental & Certification
• Cooling: Passive cooling (fanless)
• Operating Temperature: -40℃ − 85℃
• Package
• Net Weight: 150 g
• Gross Weight: 300 g

Documentations:

• DX-M1 M.2 2280 M key Datasheet

Package Includes:

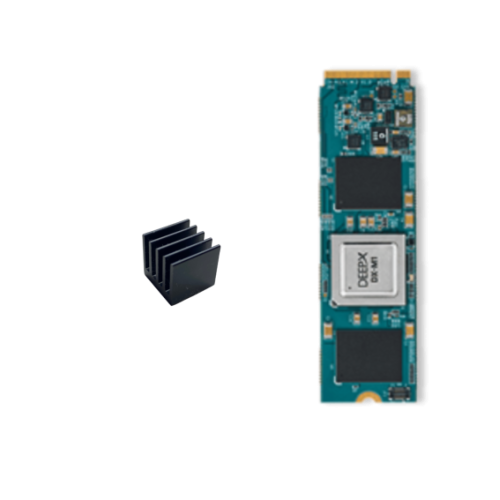

• 1 x DX-M1 M.2 2280 M key | W/ Heatsink
