- HDPLEX H5 fanless HTPC chassis takes a bigger step forward and supports rich variety of internal power supply options including ATX/SFX/FlexATX power supplies.
- We have developed a multipurpose rack to support internal mounting of ATX,SFX,Flex form factor power supply. A 45cm length AC extension cord with 90 degree angle IEC C14 connector is also included.
- H5 supports soon-to-be-released HDPLEX passive GaN 250W ATX PSU and HDPLEX GaN 500W ATX PSU. These two HDPLEX GaN PSU can achieve >90% efficiency.
| Motherboard Form Factor | Multipurpose Rack(for ATX/SFX/FlexPSU) and Internal AC Extension Cord are included in the H5 package | |||||
|---|---|---|---|---|---|---|
| HDPLEX Passive 250W GaN ATX PSU | HDPLEX 200WDC/500W DC-ATX | HDPLEX 500W GaN ATX PSU | ATX Power Supply | SFX Power Supply | FlexATX Power Supply | |
| ATX | Yes | Yes | Yes | No | No | No |
| microATX | Yes | Yes | Yes | No | No | No |
| mini-ITX | Yes | Yes | Yes | Yes | Yes | Yes |
Linear Power Supply Options for HDPLEX H5 Fanless HTPC Chassis
HDPLEX H5 fanless HTPC chassis is designed together with HDPLEX 500W ATX linear power supply to achieve the best CAPS platform targeting at computer audio customers.
To eliminate extra components in the power delivery chain, HDPLEX have developed ATX modular bridge input board to enable HDPLEX 500W ATX linear power supply directly connecting to motherboard and HDD. No more DC-ATX converter needed.
HDPLEX H5 also supportS HDPLEX 300W linear power supply + 400W HiFi DC-ATX converter for low power systems.
| Motherboard Form Factor | ATX Modular Output Bridge Board comes with HDPLEX 500W ATX Linear Power Supply | |||||
|---|---|---|---|---|---|---|
| HDPLEX 300W Linear Power Supply +500W HiFI DC-ATX Combo | HDPLEX 500W ATX Linear Power Supply | |||||
| ATX | Yes | Yes | ||||
| microATX | Yes | Yes | ||||
| mini-ITX | Yes | Yes | ||||
External Power Supply Options for HDPLEX H5 Fanless HTPC Chassis
HDPLEX H5 fanless computer chassis inherits the versatile power adapter plate from previous generation and supports self-lock 7.4*5.0 DC connector popular on 19V laptop adapters and used by HDPLEX 200W/500W DC-ATX converters, and C14 AC/IEC connector.
The HDPLEX ATX modular bridge input board designed for 500W ATX linear PSU also creates an interesting possibility in which user could place a standard ATX modular power supply outside the H5 case. This scenario has two advantages: removes a major heat source inside the case and supports any size motherboard for H5 fanless HTPC chassis.
| Motherboard Form Factor | HDPLEX H5 chassis supports Self-Lock 7.4*5.0, ATX Modular Input board, and C14 IEC AC connector. | |||||
|---|---|---|---|---|---|---|
| Silverstone ST Series Modular ATX PSU+HDPLEX Modular Bridge Input Board | External AC Adapter+HDPLEX 200W DC-ATX | External AC Adapter+HDPLEX HiFi 500W DC-ATX | ||||
| ATX | Yes | Yes | Yes | |||
| microATX | Yes | Yes | Yes | |||
| mini-ITX | Yes | Yes | Yes | |||

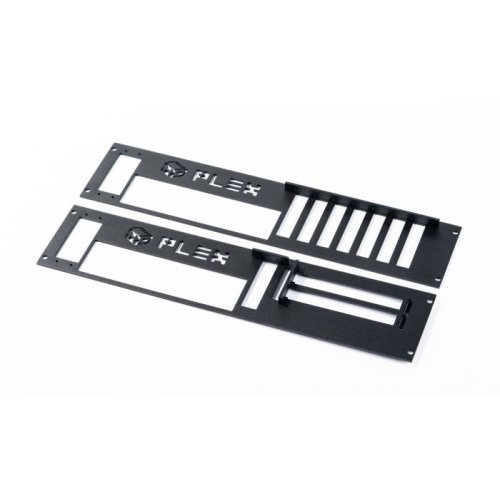

HDPLEX H5 Chassis Features Two Back Plates

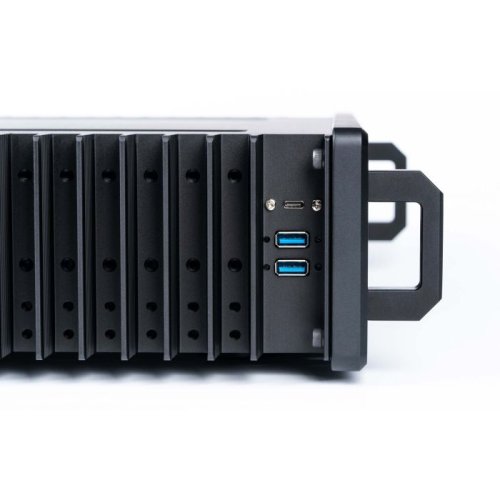

HDPLEX H5 Side I/O: Power Button, two USB 3.0 Ports, and one USB 3.1 Type C Port with Type C onboard connector
Documentations:
Package Includes:
- H5 Fanless HTPC Case
- 2 x Side Panel with FIN
- 1 x Top Plate
- 1 x Bottom Plate
- 2 x Back Plates (One Low Profile+One with Horizontal Dual Full Height)
- 1 x Faceplate
- 2 X Front Handles
- Installation Kit
- H5 Fanless CPU Heatsink System (Included in the H5 Package)
- 1 x Copper Base
- 1 x Aluminum Top Plate with FIN
- 4 x Aluminum Plate for Heatpipe Installation
- 8 x Copper Heatpipe
- Installation Kit
