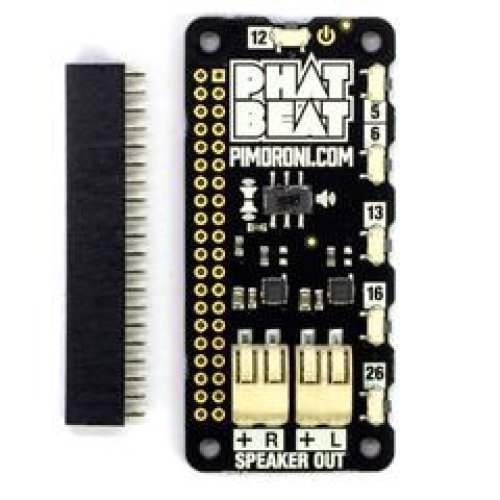

The ultimate audio add-on for your Pi! pHAT BEAT gives you high-quality, digital, amplified, stereo audio and 16 beautiful little RGB LEDs, in two rows of 8, that are ideal as a VU meter, and 6 buttons to control your audio.

Update: In addition to our regular individual slimline postage friendly packaging pHAT BEAT is now available retail packaged with each pHAT in its own colourful blister pack, ideal for retail display!

We've taken the I2S mono DAC and amplifier that we used on Speaker pHAT and Picade HAT and... added a second one for stereo goodness. There's a nifty little DIP switch on the bottom of the board that lets you select either mono (left and right are blended through both channels) or stereo playback. The clip-in terminals make it super-simple to wire in your speakers.

The two rows of 8 APA102 RGB LEDs make the perfect VU meter, but can be coded to do whatever you wish, like displaying the steps on a step sequencer Drum HAT or Piano HAT, or just pulsing in time with the beat.

The six buttons on the edges of pHAT BEAT are linked direct to GPIO, and can be used for whatever you wish, although we've suggested some uses on the board, like rewind, play/pause, fast-forward, volume up and down, and power.

Use pHAT BEAT to create a gorgeous little radio for your desk, to stream music from iPhone with Airplay, or turn it into a collaborative Slack-controlled Spotify player for your office!

Features

  • dual I2S DAC/amplifiers for stereo audio (MAX98357A)
  • 3W per channel
  • 2x push fit speaker terminals
  • DIP switch to select blended mono or stereo modes
  • 16 RGB LED pixels (APA102) in 2 rows of 8
  • 6 edge-mounted push buttons
  • Compatible with Raspberry Pi 3, 2, B+, A+, Zero, Zero W
  • Software installer and ALSA VU meter plugin
  • Python library
  • Female header requires soldering

Software

We've created a nifty one-line installer to get your pHAT BEAT set up in the blink of an eye. It'll reconfigure your ALSA audio to route it out through pHAT BEAT and install our VU meter plugin to display the volume levels in real time (although you can disable this and code the LEDs yourself).

Notes

The dimensions of pHAT BEAT are 65x30x7.5mm.



Write a review

Please login or register to review

pHAT BEAT

  • Brand: Pimoroni
  • Product Code:PIM-pHat-Beat
  • Reward Points:19
  • Availability:In Stock
  • रo 1,881.00

  • Ex Tax:रo 1,881.00
  • Price in reward points:1881

  • 8 or more रo 1,866.00
  • 15 or more रo 1,851.00
  • 40 or more रo 1,835.00
  • 80 or more रo 1,820.00
