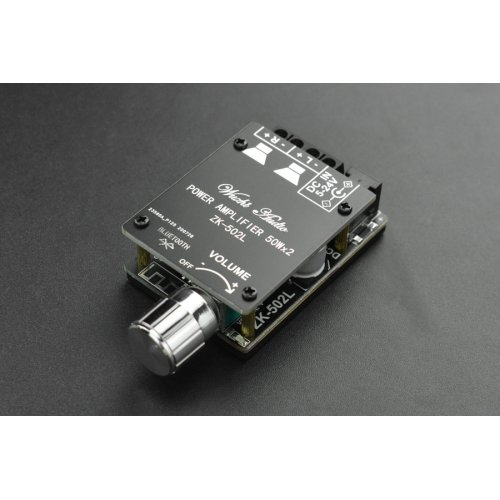

This mini Bluetooth Amplifier can be connected to your mobile phone, Raspberry Pi, and other main-boards with Bluetooth to DIY your unique speaker! With standard audio quality, the cost-effective amplifier offers 50W output power, volume adjustable knob, Bluetooth 5.0 input, and dual-channel output. It can be powered at DC 5~24V, and compatible with 4-8Ω, 30W-200W passive speakers.
The Bluetooth Amplifier comes with bottom/top protective covers and supports overheat and short-circuit protection.
Specifications:
- Power Supply: 5-24V
- Input: Bluetooth 5.0
- Audio Quality: standard
- Output Power: 50Wx2
- Compatible Speakers: 30W-200W, 4Ω-8Ω
- Channel: left/right (stereo)
- Bluetooth Transmission Distance: 15m(Without any obstacle)
- Protection: overheat, short-circuit
-
Power Voltage:
- 12V--8Ω Speaker/12W(left)+12W(right), 4Ω Speaker/20W+20W
- 15V----8Ω/18W+18W，4Ω/>30W+30W
- 19V----8Ω/32W+32W，4Ω/>45W+45W
- 24V----8Ω/38W+38W，4Ω/>50W+50W
Warranty: 90 days
- Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

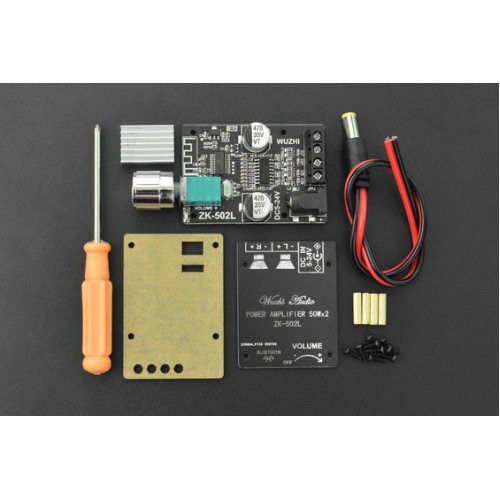

Package Includes:
- 1 x Mini Digital Bluetooth Amplifier-50Wx2
- 2 x Acrylic Protective Case
- 1 x Screwdriver
- 1 x 20cm Power Wire
- 1 x Knob
- 1 x Accessories Package
- 1 x Heat Sink
