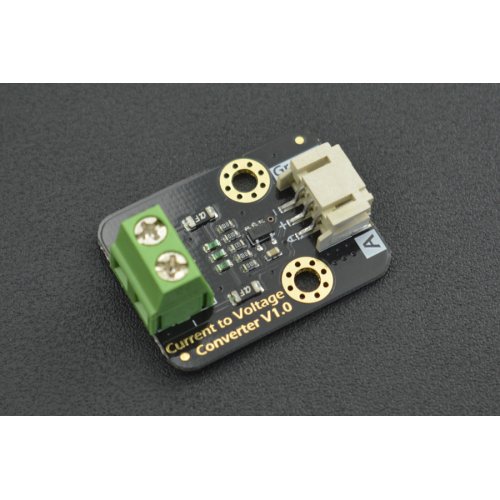

This current-to-voltage module can linearly convert 0~25mA current signals into 0~3V voltage signals. Industrial sensors or devices usually have the current signal output of 4~20 mA. With this current-to-voltage module, your main control board can easily attain the current signals input from industrial sensors or devices.

Normally, current signals lower than 4mA can be used for fault diagnosis, and current signals higher than 20mA can be used for overrun detection. Therefore, this module is specially designed with a wide detection range from 0 to 25mA, and compatible with fault detection, overrun detection applications.

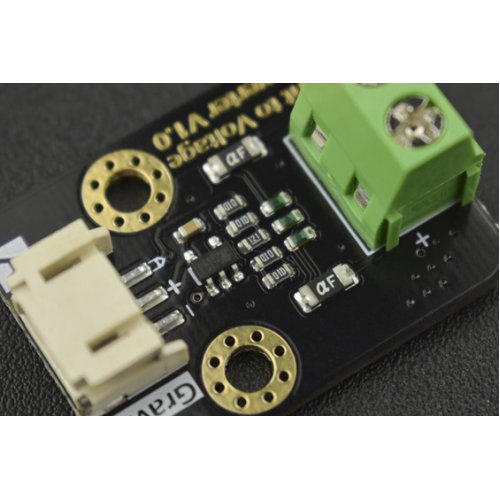

This module employs 0.1% high precision sense resistor and ultra-low noise rail-to-rail zero-drift op amp, high accuracy, no need to calibration, so it is convenient to use. 3.3V~5.5V wide voltage power supply, 0~3V voltage signal output, which are compatible with more main control boards, adapt to more applications.

Features:

Support wide voltage of 3.3~5.5V
Deploy 0.1% high precision sense resistor and ultra low noise rail-to-rail zero-drift op amp, high accuracy, and no need to calibration
Wide measurement range up to 0~25mA, which is compatible with fault diagnosis, overrun detection applications

Specifications:

Supply Voltage: 3.3~5.5V
Detection Range: 0~25mA DC
Measurement Accuracy: ±0.5% F.S. @ 16-bit ADC, ±2% F.S. @ 10-bit ADC
Termination Resistance: 120Ω
Connector Type: PH2.0-3P

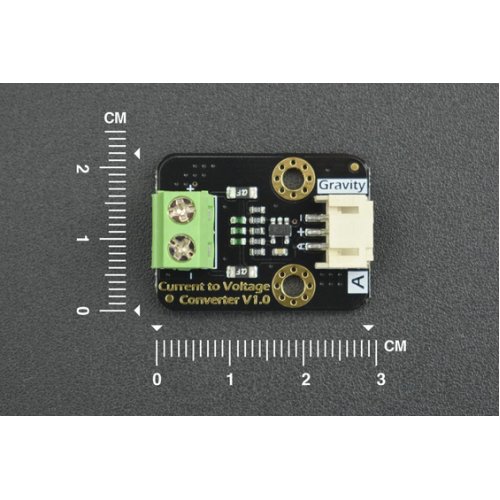

Product Size: 30mm * 22mm (1.18inch * 0.87inch)

Documents:

Datasheet

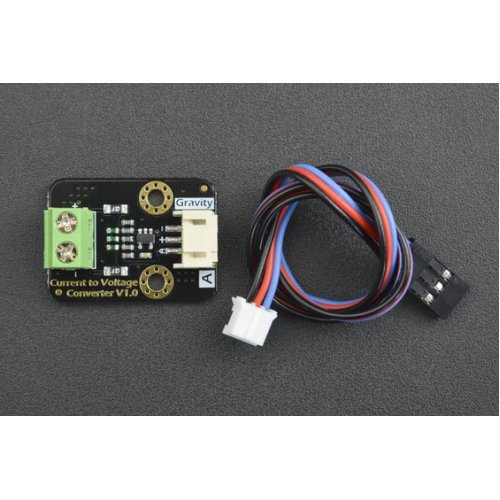

Package Includes:

1 x Analog Current to Voltage Converter
1 x Digital Sensor Cable 3pin

Gravity: Analog Current to Voltage Converter - 4~20mA

Brand: DFRobot
Product Code:DFR-Gravity-IV-Converter
Reward Points:5
Availability:In Stock

रo 552.24
रo 479.08
Ex Tax:रo 406.00
Price in reward points:484
30 or more रo 549.88
60 or more रo 548.70
145 or more रo 533.36

Qty

0 reviews / Write a review

Write a review

Gravity: Analog Current to Voltage Converter - 4~20mA

रo 479.08
