A miniature snap-action switch, also trademarked and frequently known as a micro switch, is an electric switch that is actuated by very little physical force. Micro switches are very widely used; among their applications are appliances, machinery, industrial controls, vehicles, and many other places for control of electrical circuits. They are usually rated to carry current in control circuits only, although some switches can be directly used to control small motors, solenoids, lamps, or other devices.

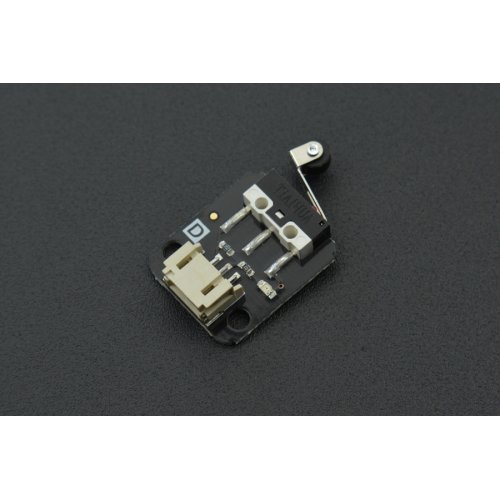

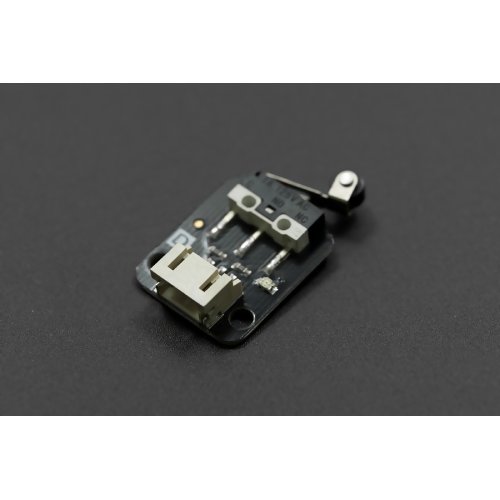

This is a small micro switch sensor designed for the Arduino. It could be directly connected to the IO Expansion shield. It integrates the pull-up resistor and the status indicator LED onboard. That makes it easier for testing.The miniature snap-action micro switch with roller lever make it suitable for more different environment application.

Applications:

Levelling and safety switches in elevators
Door interlock on a microwave oven
Vending machines
Detect paper jams or other faults in photocopiers
3D Printer position feedback

Specifications:

Working Voltage: 5v
Pinout
- 1 Digital output
- 2 VCC
- 3 GND
Onboard status indicator LED
Directly connected to the IO Expansion shield For Arduino
M3 mounting hole x2

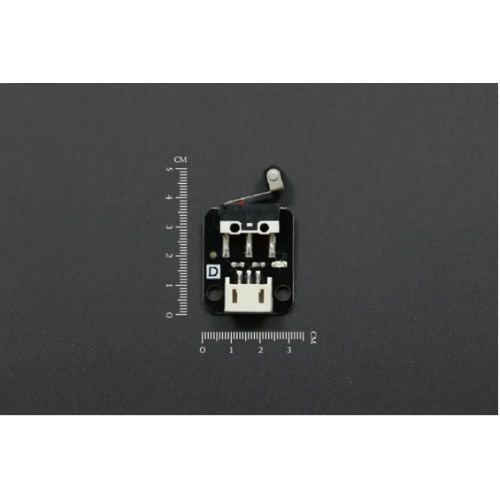

Size: 30x20x8mm (1.18x0.79x0.31")

Documents:

Schematic

Warranty: 90 days

Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

1 x Crash Sensor

Gravity: Digital Crash Sensor

Brand: DFRobot
Product Code:DFR-Digital-Crash-Sensor
Reward Points:2
Availability:In Stock

रo 276.12
रo 239.54
Ex Tax:रo 203.00
Price in reward points:242
60 or more रo 274.94
120 or more रo 273.76
295 or more रo 266.68

Available Options

Type

48) Left

49) Right

Qty

0 reviews / Write a review
