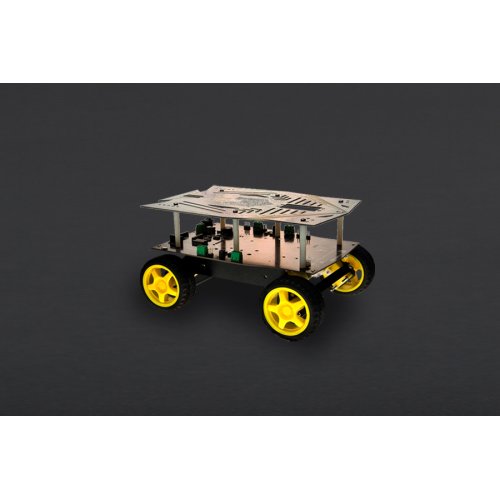

The Cherokey 4WD mobile robot is a versatile mobile robot jeep compatible with the most popular microcontrollers like DFRduino UNO R3 - Arduino Compatible, Mega2560 (Arduino compatible microcontroller board), Romeo V2 - a Robot Control Board with Motor Driver (Compatible with Arduino)...etc. Cherokey embeded the L298P motor driver chip which allows to drive of two 6-12V DC motors with maximum 2A current. The integrated 2 way DC motor driver and Xbee & APC220 socket allows you to start your project immediately without the need for an additional motor driver or wireless shield.
Specifications:
- 2 channel DC motor driver
- Solder prototyping areas
- Standard Servo stocket
- Mounting holes compatible with Arduino UNO, Mega, Romeo
- Incorporates dual H-bridge for bi-directional motor control (digital pins 4,5,6,7 suggest)
- Easy connection to Xbee, DFRobot Bluetooth, and APC220 wireless modules
- 7 white LEDs around the board for effect
- TT Geared Motor with Back Shaft (180rpm 6v L Shape)
- Size: 55mm x 48.3mm x 23mm(2.17"x1.90"x0.91")
- Weight:45g
- Assembled size:225x174x112
Applications:
- Education/competition robot
- Mobile robotic arm
- Outdoors 4WD mobile robot...etc
Documents:

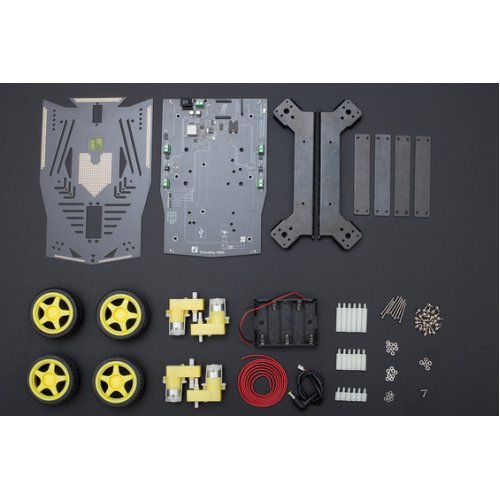

Package Includes:
- 1 x Cherokey 4WD chassis
- 1 x Cherokey expansion plate
- 2 x Aluminum side-panel
- 4 x Aluminum connecting-rod
- 1 x 5xAA battery holder
- 1 x PH-2.0 to DC-2.2 adapter
- 1 x Screws KIT
- 4 x Micro DC Geared Motors
- 4 x Rubber Wheels
- 1 x Instruction manual
Cherokey: 4WD Mobile Robot for Arduino
- Brand: DFRobot
- Product Code:DFR-Cherokey-4WD-Robot
- Reward Points:71
- Availability:In Stock
- रo 8,111.32
-
रo 7,038.70
- Ex Tax:रo 5,965.00
- Price in reward points:7101
-
- 2 or more रo 8,078.28
- 4 or more रo 8,044.06
- 10 or more रo 7,832.84
