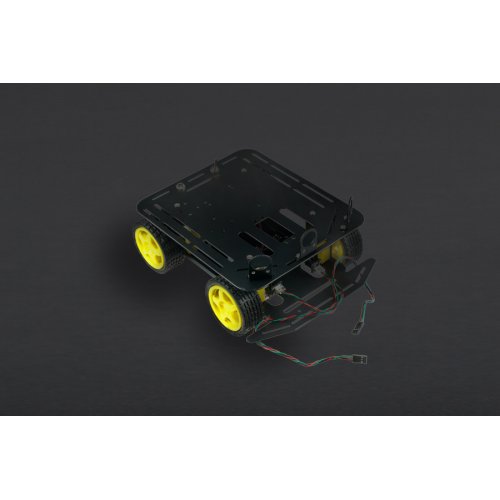

The DFRobot Baron-4WD Mobile Robot Platform for Arduino with Encoder is widely used on the world's self-developed control panel platform. This drive method has a strong obstacle and climbing ability with high strength aluminum alloy body.
Features:
- Compatible with Hitec 311,422 servo and Pan/Tile Kit
- Compatible Infrared Adjustable Distance Switch Sensor installation
- Infrared sensors switch installed
- Look for line sensor installation
- URM37 ultrasonic sensor
- Compatible with standard sensor bracket on the HCR (Mobile Robot Platform) and standard head bracket
Specifications:
- Voltage: +4.5 to 6V
- TT Geared Motor specifications
- Wheel diameter: 65mm（2.6 in）
- Dimensions: Length 230mm（9 in） Width 185mm（7.3 in） high 110mm（4.3 in）
- Weight: 614 grams (without batteries)
- Maximum load: 800g
Documents:

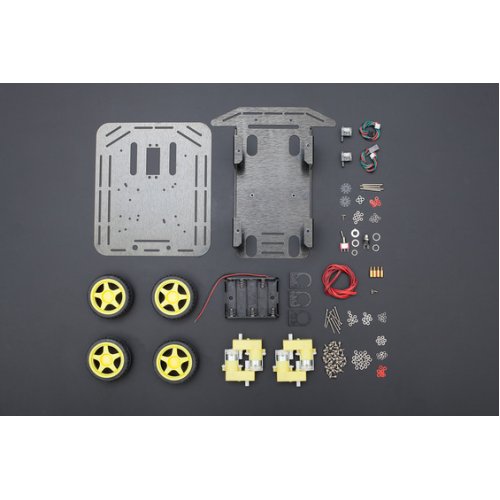

Package Includes:
- 1 x Body structural parts
- 4 x High-quality rubber wheels
- 4 x Micro Gear Motor
- 1 x Encoder Kit
- 1 x Power Switch
- 1 x Charging port
- 1 x Installation Line 1 above
- 4 x Cylinders
- 1 x Mounting screw
- 3 x Infrared proximity switch mounting bracket
Baron-4WD Mobile Robot Platform for Arduino with Encoder
- Brand: DFRobot
- Product Code:DFR-Baron-4WD-Robot
- Reward Points:41
- Availability:In Stock
- रo 4,714.10
-
रo 4,091.06
- Ex Tax:रo 3,467.00
- Price in reward points:4127
-
- 3 or more रo 4,694.04
- 7 or more रo 4,675.16
- 17 or more रo 4,552.44
