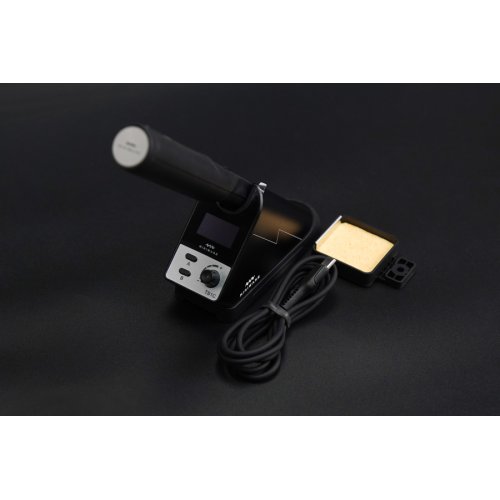

The Miniware TS1C soldering station is a cordless smart soldering station which uses a super-capacitor inside the soldering iron. The super capacitor is good for many soldering joints, and we can keep an eye on the power and temperature status using the OLED display. The soldering iron and station are linked together using Bluetooth.

Super Capacitor Energy Storage Technology

• Extraordinary hard-core energy storage technology by a 750F super capacitor provide 36W max. heating power and more than 180 soldered dots (based on 0805 SMD) truly achieve wireless welding freedom

• Long lifetime and fast charging speed in only 7 minutes are better than traditional battery power system


Remote Control by Bluetooth Connection

• Bluetooth communication between the station and the soldering iron achieves remote control and setting with soldering iron preheating, temperature adjustment, and an information display convenient to use


Multifunction Station

• Set soldering control, soldering charging, soldering stand and 3 expansion slots at the bottom of the station, all in one

USB Type C PD Charger Input

• USB type C power jack with PD2.0 power system max. 45W input which can be powered easily

• It comes with soft silicone rubber USB cable and 45W PD Charger


Safe to Use

• Support auto-sleep, auto-cool down, charging protection, under-voltage protection and over-temperature protection.


Compact Desktop Soldering Station

• A compact pen-shaped size with only 23mm diameter and 133mm long handle is convenient to grip and store, saving space

Wireless Communication

• BLE 4.2 Bluetooth communication technology enables remote control and settings.


Display

• A 128*64-pixel OLED screen displays the real-time status of the soldering handle.


Interface

• Compatible with MINIWARE 3.5mm audio interface soldering tips (TS80/80P series soldering tips).

Specifications:

TS1C Control Base

• Model: TS1C-S

• Screen: 128*64 pixel monochrome OLED
• Maximum Input Voltage: PD2 20V
• Maximum Input Power: 45W
• Safety Protection: Overcurrent protection
• Dimensions: Base 44.5*122*73mm, Sponge Slot 42*43mm

TS1C Soldering Iron Handle

• Model: TS1C-P

• Interface Type: USB Type-C
• Capacitance: 750F
• Charging Time: 7 minutes
• Maximum Heating Power: 36W
• Temperature Range: 100°C~400°C (212°F~752°F)
• Temperature Stability: ±3%
• Soldering Tip: MINWARE 3.5mm audio jack soldering tip
• Safety Protection: Low voltage protection for the capacitor, capacitor charging protection, over-temperature protection
• Dimensions: 23*133mm

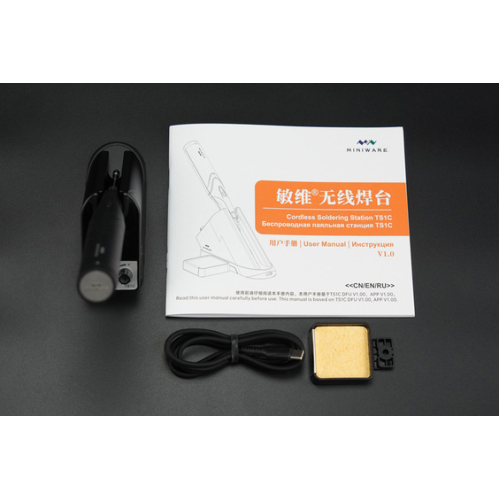

Package Includes:

• 1 x TS1C Soldering Iron Handle (Black)

• 1 x TS1C Control Base
• 1 x Soldering Tip (TS-B02)
• 1 x Sponge Tray
• 1 x Absorbent Sponge
• 1 x USB-C Silicone Power Cable
• 1 x User Manual
