Introduction:

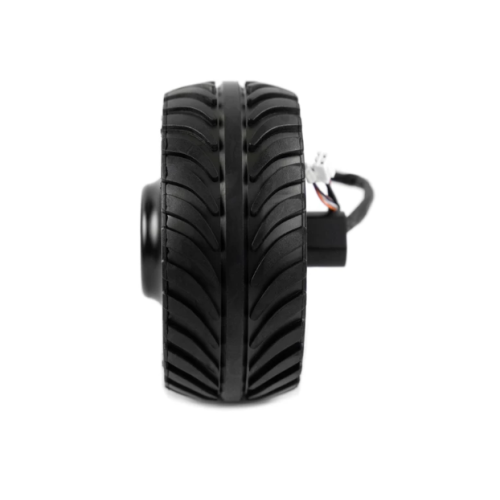

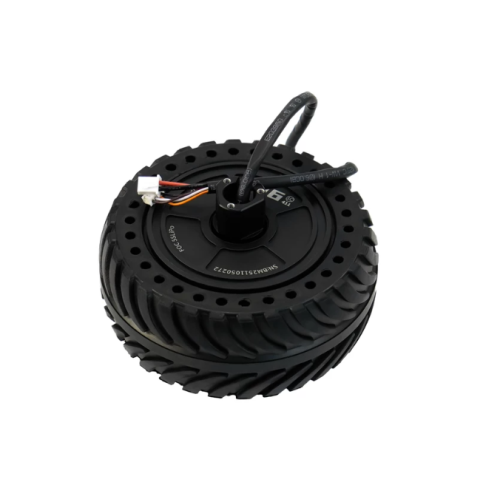

The M0601 is a highly integrated, direct-drive hub motor engineered for intelligent robots, AGVs, and AMRs. By seamlessly combining a brushless DC motor, a servo driver, and a high-precision encoder into a compact 102mm chassis, the M0601 eliminates the need for external drivers and complex wiring. This all-in-one architecture streamlines mechanical design and accelerates system integration for mobile platforms.

Compact All-in-One Integration

The M0601 revolutionizes robot chassis design by integrating the motor, servo driver, and encoder into a single 102mm diameter unit. This "plug-and-play" architecture removes the need for external driver installation and complex cabling, significantly saving internal space and reducing mechanical assembly time.

Precision Motion Control

Driven by advanced FOC (Field Oriented Control) algorithms and a 4096-line high-precision encoder, the motor achieves triple-loop closed control over torque, speed, and position. This configuration ensures smooth low-speed operation and provides the high-resolution feedback required for precise navigation and positioning in autonomous systems.

High Torque Density & Dynamic Performance

Despite its compact form factor, the motor delivers a rated torque of 0.96 N·m and a robust stall torque of 2.0 N·m. This power output enables agile start-stop maneuvers and provides sufficient force for obstacle traversal, ensuring reliable mobility under varying load conditions.

Industrial-Grade Reliability & Silence

Engineered for noise-sensitive and demanding environments, the motor operates at noise levels below 50 dB while maintaining an IP54 protection rating against dust and moisture. The system further enhances reliability through an RS485 interface, which enables real-time monitoring of current and temperature, automatically triggering protection mechanisms against over-current or stall events.

Orientation Note: Left vs. Right Configuration The M0601 is available in specific Left and Right orientations to ensure optimal tire traction and correct cable routing.

• Left Motor: Designed for the left side of the chassis.
• Right Motor: Designed for the right side of the chassis.

Note: Please verify the mounting position on your robot chassis before ordering to match the cable exit direction.

Features:

• Integrated design combining motor, driver, and encoder for "plug-and-play" deployment
• Supports RS485 communication for real-time monitoring of position, speed, and current
• Triple-loop closed control (Torque, Speed, Position) via advanced FOC algorithm
• High-precision 4096-line built-in encoder for accurate motion feedback
• Robust performance with 2.0 N·m stall torque and IP54 protection rating
• Ultra-quiet operation with noise levels maintained below 50 dB
• Comprehensive safety features including over-current, over-temperature, and stall protection

Specifications:

Basic Parameters:

• Operating Voltage: 18 VDC
• Rated Current: 1.25 A
• Rated Speed: 115 rpm
• Rated Torque: 0.96 N·m
• Stall Torque: 2.0 N·m
• Stall Current: ≤ 2.7 A
• No-Load Current: ≤ 0.25 A
• No-Load Speed: 200 ± 10 rpm
• Protection Rating: IP54
• Torque Constant: 0.75 N.m/A
• Speed Constant: 11.1 rpm/V
• Interface Type: RS485
• Encoder Resolution: 4096
• Relative Accuracy: 1024
• Noise: ≤ 50 dB
• Operating Temperature: -20℃ ~ 45℃

Physical Dimensions:

• Wheel Diameter: 102mm (Refer to Dimension Diagram for details)

Applications:

• Service Robots (Delivery, Guide, Cleaning)
• AGVs & AMRs (Logistics, Industrial Transport)
• Mobile Research Platforms

Package Includes:

• 1x M0601 Hub Motor (Left Orientation)
