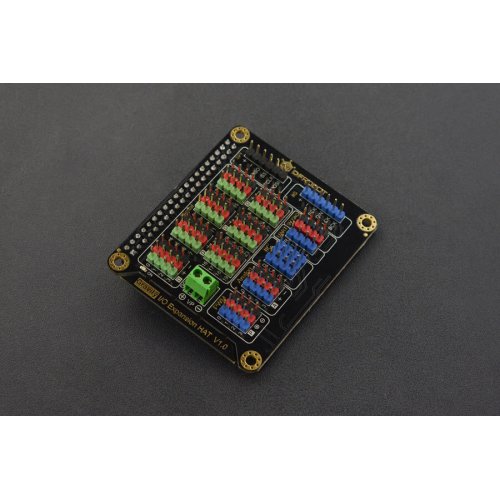

This IO Expansion HAT from DFRobot is the perfect companion for your Raspberry Pi 5, Raspberry Pi 4B, and Raspberry Pi 3B+! It leads out all of the IO ports on Raspberry Pi including digital port, analog port, PWM, I2C, UART, SPI, and IIS. Besides that, the HAT is totally compatible with DFRobot Gravity Series, which frees users from complicated connection work and enables them to just concentrate on their project building.
Raspberry Pi GPIO pins work with a maximum logic level of 3.3V. Besides the sensor and module of 3.3V power supply, the product also supports:
- Sensor and module with 5V power supply and 3.3V level
- PWM external power supply (6~12V)
- Controlling multiple servos
Dimension Diagram
Specifications:
- Operating Voltage: 5V
- PWM Port External Power: 6-12V
- Sensor Interface External Power: 3.3V
- Dimension: 65*56 mm/2.56*2.20”
PROJECTS
Project 1. Top 10 Worth of Trying Raspberry Pico/Pi 4/Pi 3B+ Projects
Project 2. 30 Awesome Projects for a Raspberry Pi
Documentation:
Package Includes:
- 1 x IO Expansion HAT for Raspberry Pi 4B/3B+
IO Expansion HAT for Raspberry Pi 5 / 4B / 3B+
- Brand: DFRobot
- Product Code:NR-DFR-IO-Expansion-HAT
- Reward Points:9
- Availability:In Stock
- रo 1,122.18
-
रo 972.32
- Ex Tax:रo 824.00
- Price in reward points:982
-
- 14 or more रo 1,117.46
- 29 or more रo 1,112.74
- 72 or more रo 1,083.24
