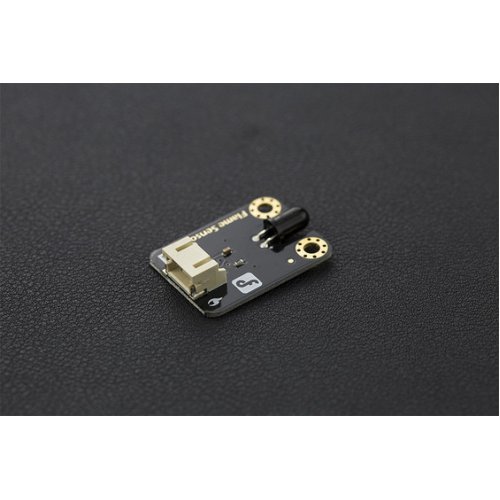

This Gravity: Analog Flame Sensor For Arduino can be used to detect fire or other wavelength at 760 nm ~ 1100 nm light. In the fire-fighting robot game, the flame plays an important role in the probe, which can be used as the robot's eyes to find fire source or football. It can make use of fire-fighting robots, soccer robots.

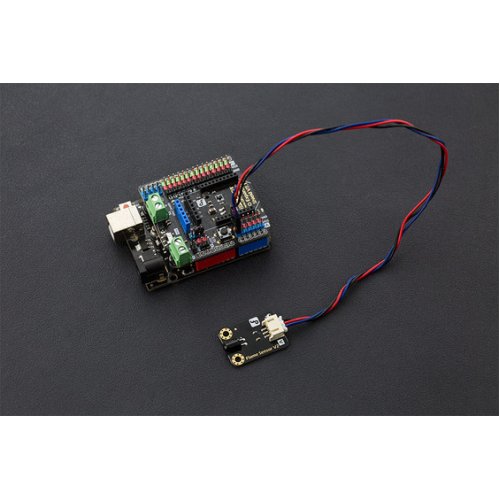

The Flame sensor has probe angle of 60 degrees, two M3 mounting holes is provided to install on various platforms. This arduino flame sensor's operating temperature is -25 degrees Celsius to 85 degrees Celsius, in the course of the flame it should be noted that the probe distance from the flame should not be too close inorder to avoid damage. This sensor uses Gravity interface, and works from 3.3V-5V which is able to be compatible with various platforms such as Arduino, Raspberry Pi, Intel Galileo, Curie and Joule.

Specifications:

Supply Voltage: 3.3V to 5V
Detection range: 20cm (4.8V) ~ 100cm (1V)
Rang of Spectral Bandwidth : 760nm to 1100nm
Responsive time : 15us
Interface: Analog
Size:22x30mm (0.87x1.18in)

Documents:

Package Includes:

1 x Gravity: Analog Flame Sensor For Arduino
1 x Analog cable

Gravity: Analog Flame Sensor For Arduino

Brand: DFRobot
Product Code:DFR-Analog-Flame-Sensor
Reward Points:4
Availability:In Stock

रo 405.92
रo 352.82
Ex Tax:रo 299.00
Price in reward points:356
40 or more रo 404.74
80 or more रo 403.56
200 or more रo 392.94

Qty

0 reviews / Write a review
