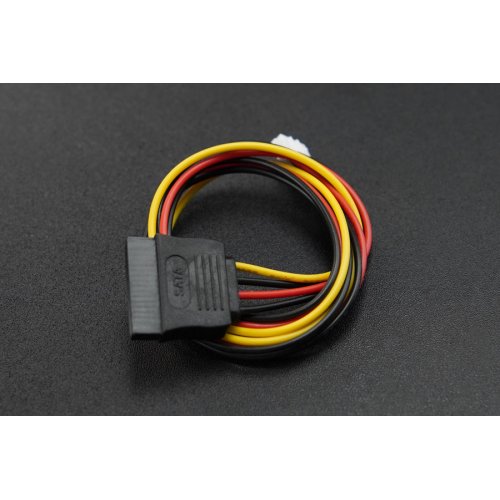

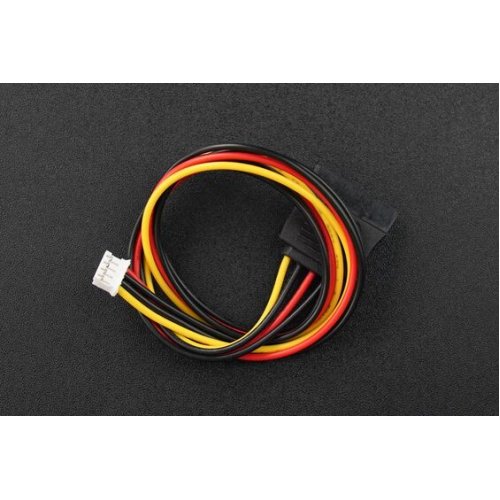

This is a power supply cable specifically designed for connecting SATA devices to the LattePanda Sigma Single Board Computer.

It features a SATA-15P female connector and a PH2.0-4P terminal, with a cable length of 40cm.

This cable can be used to supply power to SATA interface hard drives or other devices connected to the LattePanda Sigma single-board-computer.

SPECIFICATION:

• Interface: PH2.0-4P, SATA-15P female connector
• Length: 40cm

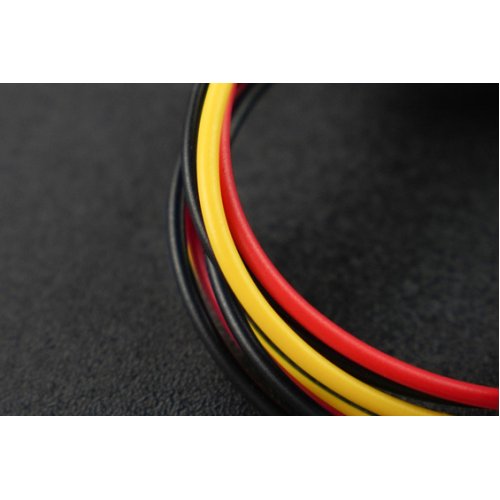

• Cable Colors: PH2.0 end - Yellow (12V), Black (GND), Black (GND), Red (5V); SATA end - Yellow, Black, Red, Black
• Wire Gauge: 20AWG
• Insulation Material: PVC insulation
• Conductor Material: Pure copper
• Cable Outer Diameter: OD1.8mm

APPLICATIONS:

• LattePanda Sigma Board Power Supply

Package Includes:

• 1 x SATA to PH2.0 Connection Line for LattePanda Sigma (40cm)
