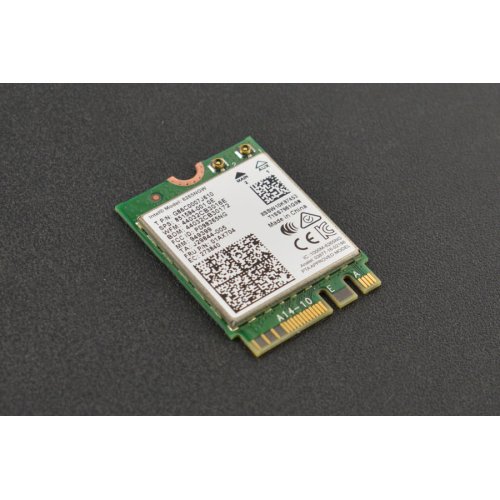

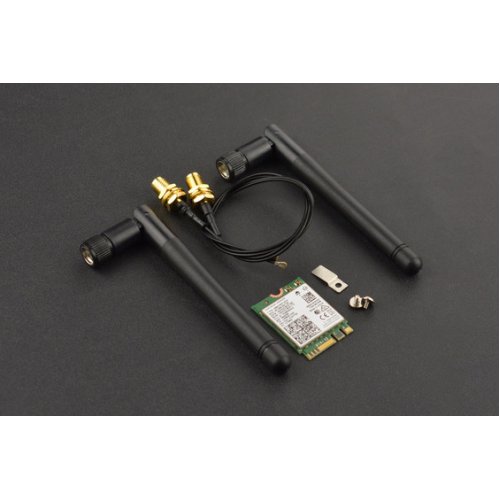

This WiFi card, based on Intel 8265AC chip, is specially designed for Jetson Nano. It supports 4.2 Bluetooth, 2.4G and 5G dual-band WiFi. The transmission speed can reach up to 867Mbps. Coupled with external 3db large gain dual antenna, even if in the complex wireless environment with multi-interference, it can also have good wireless penetration and wider coverage, making data reception smoother and signal transmission farther. The antenna supports 90-degree rotation. You can adjust the angle of antenna to improve signal sensitivity according to the actual use environment and signal strength. Give full play to the performance of this WiFi card, and enjoy high network speed at any time.

This WiFi module can be directly plugged into the WiFi port reserved on Jetson Nano board, easy to use.

Installation:

1.Remove the two fixing screws on the Jetson Nano heatsink module, release the side latches located on either side of the module to remove it.

2. Insert the WiFi card into the card slot, and seat the card. Then reinstall the heatsink module onto the carrier board.

Specifications:

Chip: Intel 8265AC
Network Interface: NGFF（m.2）
WiFi Frequency Band: 2.4GHz-5GHz
Standard Protocol: IEEE 802.11a/b/g/n/ac
Wireless Speed: 300Mbps+867Mbps
WiFi Connector: IPEX
Bluetooth: 4.2
Compatible with Linux, Windows 10/8.1/8/7

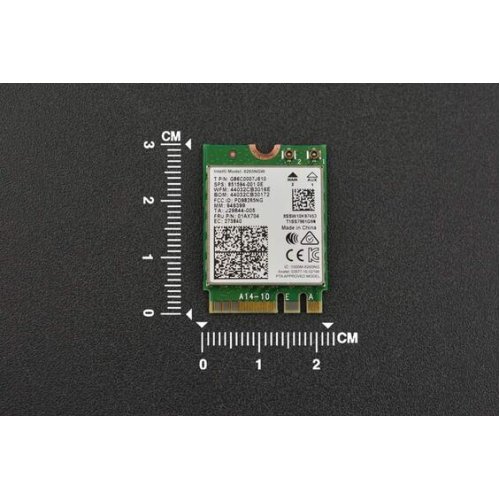

Dimension: 22 x 30 x 2.4mm/0.87 x 1.18 x 0.09”

Package Includes:

1 x WiFi Module for Jetson Nano

WiFi Module for Jetson Nano

Product Code:DFR-WiFi-Module-Jetson-Nano
Reward Points:28
Availability:In Stock

रo 3,234.38
रo 2,807.22
Ex Tax:रo 2,379.00
Price in reward points:2832
5 or more रo 3,221.40
10 or more रo 3,208.42
25 or more रo 3,123.46

Qty

0 reviews / Write a review
