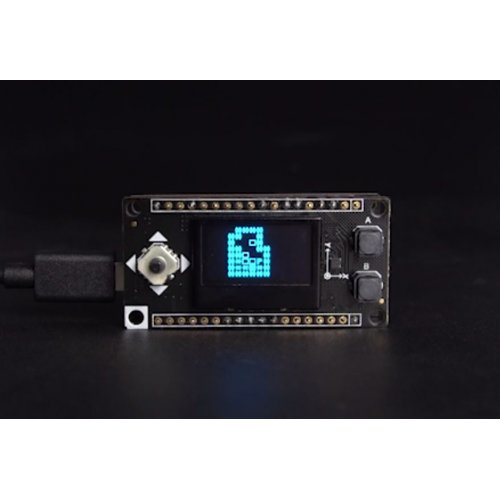

DFRobot FireBeetle series is low-power development board designed for the IoT projects. This FireBeetle covers display module is equipped with 128 x 64 resolution OLED and new version of SSD1360 driver IC, uses I2C interface, supports for the Arduino library and microPython coding program, fully compatible with the Gravity I2C OLED-2864 screen.

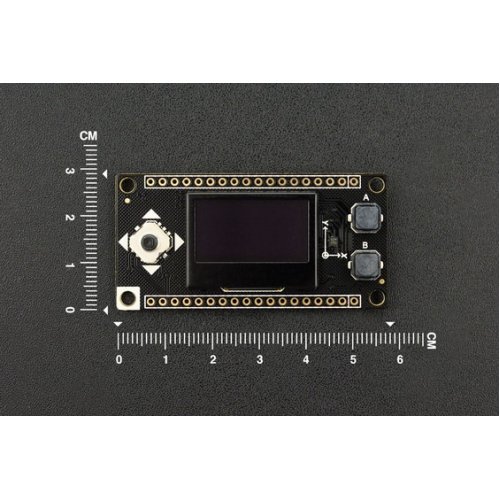

OLED screen has a protective frame to protect the screen, it prevents the finger from being scratched on the edge of the glass. The OLED 12864 display module also integrates the GT30L24A3W multi-language font library chip and the BMA220 three-axis accelerometer. In addition, the FireBeetle Covers-OLED12864 display features an analog directional key and two independent digital keys A and B.
OLED Shield for ESP8266 ESP32 | Easy UI for projects:
Features:
- Support Multi-language Font
- Built-in 3-axis acceleration sensor
Specifications:
- Voltage Range: 3.7 V-5.5 V
- 2 User Buttons: Using digital port D4, D8 detection mode
- 5-way Switch: Using analog port A0 detection mode
Three- axis Accelerometer BMA220: I2C
- Data Bus: I2C
- Dimension: 0.079 x 0.079 x 0.035 in/ 2 x 2 x 0.9 mm
- Resolution: 6 bit
- Range: 2/4/8/16 g
- Power Consumption: 250 uA
OLED
- Model: UG-2864HLBEG01
- Dimension: 0.96 in
- Color: blue
- Data Bus: I2C
- Pixel: 128 x 64
Font Chip: GT30L24A3W
Data Bus: SPI
Character Set:
- GB18030 Simplified Chinese/Traditional Chinese
- KSC5601 Korean
- JIS0208 Japanese
- 180 Foreign Font
- Support for Multinational Unicode
- IS08859 and CODE PAGE
- Chinese Character Size:12 dot matrix, 16 dot matrix, 24 dot matrix
- Foreign Character Size:16 dot matrix, 24 dot matrix
- Working Current: 12 mA
Documents:
Warranty: 90 days
- Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

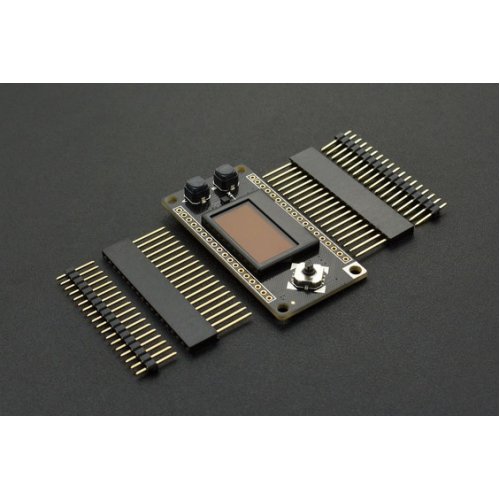

Package Includes:
- 1 x Firebeetle Covers-OLED 128 x 64 Display
- 2 x 18 pin-2.54 mm Pin Header
- 2 x 18 pin-2.54 mm Long Pin Header
