The AHT20 is a high-precision but low-cost temperature and humidity sensor, which is equipped with an improved MEMS semiconductor capacitive humidity sensor element. It features standard I2C interface and a wide voltage supply of 2V - 5V. And with the simple peripheral circuit, it performs stably even in harsh environments in the measuring range of -40~＋85℃.
This sensor can be widely used for measuring the environmental temperature and humidity of home electronic equipment, the temperature and humidity of automobiles, and so on.
Features :
- Digital output, I2C interface
- Excellent long-term stability
- Quick response and strong anti-interference ability
Applications :
- HVAC
- Dehumidifier
- Testing and Inspection Equipment
- Consumer Appliances
- Automobiles
- Automatic Control
- Data Loggers
- Weather Stations
Specifications :
Module Parameters
- Operating Voltage: DC2V~5V
- Output Signal: I2C
- I2C Address: 0×38

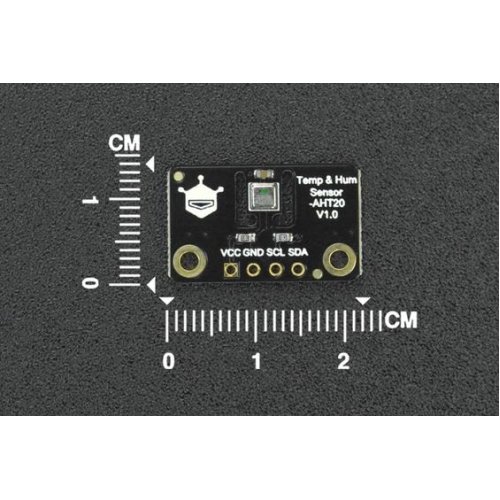

- Dimension: 30mm×20.5mm/1.18×0.81"
AHT20 Chip Parameters
Relative Humidity
- Resolution: 0.024 %RH
- Accuracy Error: ±2% RH
- Repeatability: ±0.1 %RH
- Hysteresis: ±1 %RH
- Non-linear: ±0.1 %RH
- Response Time: 8S
- Operating Range: 0~100 %RH
- Long-term Drift: ＜0.5 %RH/yr
Temperature
- Resolution: 0.01℃
- Accuracy Error: ±0.3℃
- Repeatability: ±0.1℃
- Hysteresis: ±0.1℃
- Response Time: minimum 5S, maximum 30S
- Operating Range: -40℃~85℃
- Long-term Drift: ＜0.04℃/yr
Documents :
Package Includes :

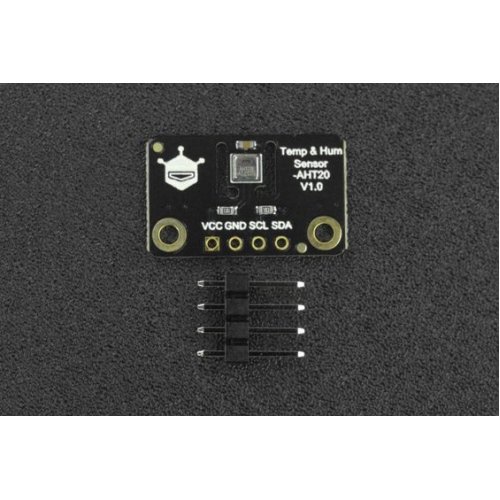

- 1 x Fermion: AHT20 Temperature and Humidity Sensor
- 1 x 2.54-4P Black Single-row Pin Header
Fermion: AHT20 Temperature and Humidity Sensor (Breakout)
- Brand: DFRobot
- Product Code:NR-DFR-Fermion-AHT20-TH-Sensor
- Reward Points:4
- Availability:In Stock
- रo 503.86
-
रo 423.62
- Ex Tax:रo 359.00
- Price in reward points:427
