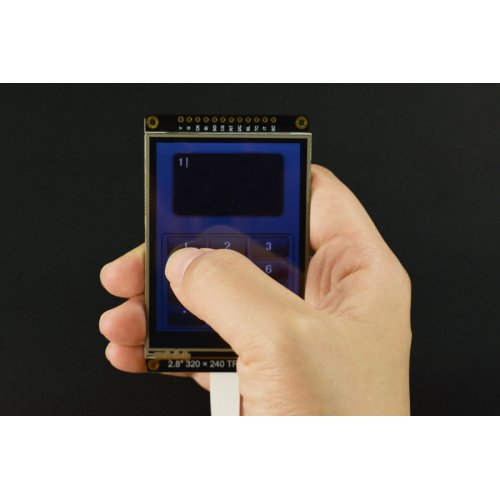

2.8 inch LCD display module adopts the ILI9341 driver chip and integrates XPT2046 that supports resistive touch. The IPS display module adopts SPI(4-line) communication mode, performing excellently in the angle of view(60/60/60/60).

Features:

Wide-angle of view
Multiple capacitive touch points
High resolution
GDI, plug, and play

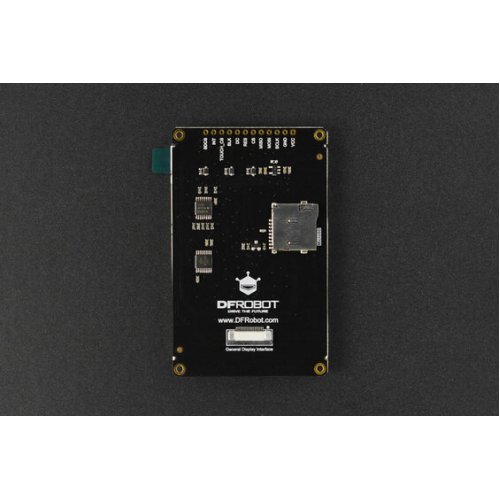

Onboard MicroSD card slot

Specifications:

Operating Voltage: 3.3V-5.5V
Display Color: 16-bit Color Depth (RGB565)
Driver Chip: ILI9341
Touch Chip: XPT2046
Pixel: 320x240
Communication Mode: SPI
Brightness (cd/m2): 300（TYP）
Full-screen Consumption: 43.5mA*5V/3.3V
Operating Temperature: -10℃~+60℃
Display Area: 57.60x43.20mm/2.27x1.70”

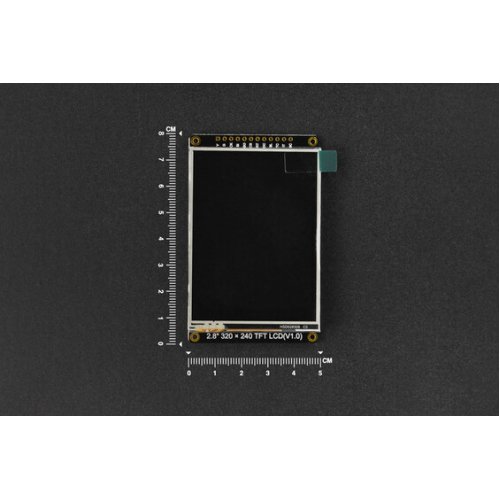

Module Dimension: 80.00x50.00mm/3.15x1.97”
Mounting Hole Diameter: 2mm

Applications:

Sensor Monitoring and Warning
Controller Display
Flash or 3D Display
Touch Interface

Documents:

Product wiki

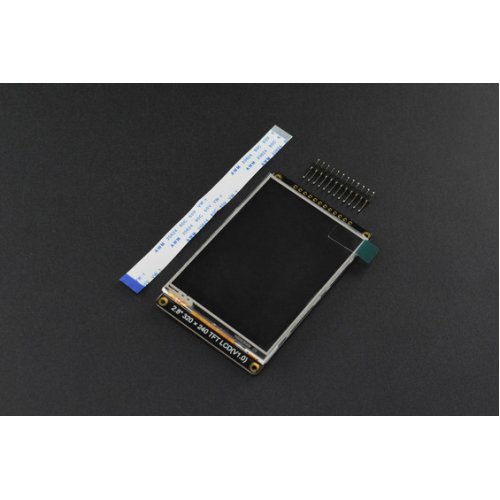

Package Includes:

1 x 2.8”320x240 IPS TFT LCD Touchscreen with MicroSD
1 x 2.54-12P Black Single Row Pin Header
1 x FPC0.5-18PIN 10cm Reverse Connection Line

Fermion: 2.8 inch 320x240 TFT LCD Resistive Touchscreen with MicroSD Card Slot (Breakout)

Brand: DFRobot
Product Code:DFR-2.8-IPS-TFT-LCD
Reward Points:25
Availability:In Stock

रo 2,844.98
रo 2,468.56
Ex Tax:रo 2,092.00
Price in reward points:2490
6 or more रo 2,833.18
10 or more रo 2,821.38
30 or more रo 2,747.04

Qty

0 reviews / Write a review

Write a review

Fermion: 2.8 inch 320x240 TFT LCD Resistive Touchscreen with MicroSD Card Slot (Breakout)

रo 2,468.56
