- 20mm X 22mm compact size
- Direct downloading and testing via Micro USB
- V-shaped large-size gold-plated IO ports make it convenient for the user to twist wires upon, and can also be directly sewn on clothes with conductive thread.
- Two honeycomb shape gold-plated power interface
- Magic light blue soft BLINK indicator
- Microcontroller: ATmega32u4
- Clock Speed: 16 MHz
- Operating Voltage: 5V DC
- Digital I/O Pins: 10
- PWM Channels: 4
- Analog Input Channels: 5
- UART: 1
- I2C: 1
- Micro USB: 1
- Power Ports: 2
- Flash Memory: 32 KB of which 4KB used by bootloader
- SRAM: 2.5 KB
- EEPROM: 1 KB
- Size: 20mm*22mm*3.8mm
- 1 x Bettle

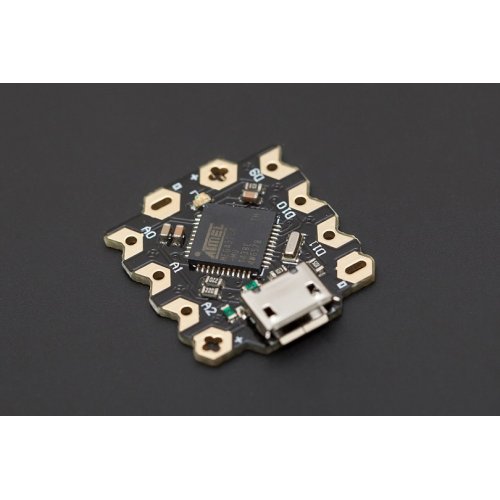

DFRobot Beetle Board - Compatible with Arduino Leonardo - ATmega32U4
- Brand: DFRobot
- Product Code:DFR-Beetle-Board
- Reward Points:11
- Availability:In Stock
- रo 1,283.84
-
रo 1,113.92
- Ex Tax:रo 944.00
- Price in reward points:1124
-
- 13 or more रo 1,279.12
- 25 or more रo 1,273.22
- 63 or more रo 1,240.18
