This is a waterproofed version of the DS18B20 Temperature sensor. While the sensor is good up to 125°C the cable is jacketed in PVC so we suggest keeping it under 100°C. Because they are digital, you don't get any signal degradation even over long distances. The DS18B20 provides 9 to 12-bit (configurable) temperature readings over a 1-Wire interface so that only one wire (and ground) needs to be connected from a central microprocessor. Usable with 3.0-5.5V systems.

Because each DS18B20 contains a unique silicon serial number, multiple DS18B20s can exist on the same 1-Wire bus. This allows for placing temperature sensors in many different places. Applications where this feature is useful include HVAC environmental controls, sensing temperatures inside buildings, equipment or machinery, and process monitoring and control.

Specifications:

Usable with 3.0V to 5.5V power/data
±0.5°C Accuracy from -10°C to +85°C
Usable temperature range: -55 to 125°C (-67°F to +257°F)
9 to 12 bit selectable resolution
Uses 1-Wire interface- requires only one digital pin for communication
Unique 64 bit ID burned into the chip
Multiple sensors can share one pin
Temperature-limit alarm system
Query time is less than 750ms

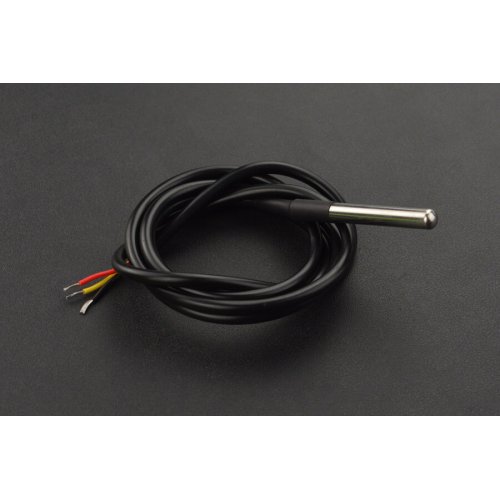

3 wires interface:
- Type A
  - Red wire - VCC
  - Black wire - GND
  - Yellow wire - DATA
- Type B (Recently there's a series of sensors using this pin mapping. Sorry for the inconvenience.)
  - Red wire - VCC
  - Yellow wire - GND
  - Green wire - DATA

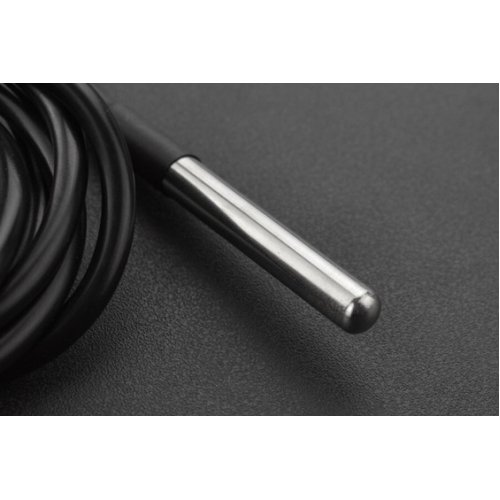

Stainless steel tube 6mm diameter by 35mm long
Cable diameter: 4mm (0.16)
Length: 95cm (37.4")

Package Includes:

1 x Waterproof DS18B20 Digital temperature sensor

Waterproof DS18B20 Digital Temperature Sensor for Arduino

Brand: DFRobot
Product Code:DFR-DS18B20-Sensor
Reward Points:6
Availability:In Stock

रo 690.30
रo 599.44
Ex Tax:रo 508.00
Price in reward points:605
25 or more रo 687.94
50 or more रo 685.58
120 or more रo 666.70

Qty

0 reviews / Write a review
