Solar Power Manager Micro is a micro power, high-efficiency solar power management module, designed for powering IoT based low-power wireless sensors or controllers with 1V~3V small size solar panels. Benefited from its extremely low power dissipation and MPPT (maximum power point tracking), the module is able to maximize the conversion efficiency of solar energy under weak sunlight. These features make low-power wireless devices charge-free and battery replacement-free possible by pure solar power.



The module employs constant voltage ratio MPPT (Maximum Power Point Tracking) algorithm to maximize output power of the solar panel under various sunlight. It can charge a 3.7V lipo battery through solar or USB, providing charge current up to 70mA or 100mA respectively. A 3.3V 90mA regulated output can handle burst current of most low-power wireless devices during transmitting or receiving. In low-power solar projects, lipo battery may suffer from over-discharge problem when it is cloudy for days, or the capacity of battery can not meet the device’s need. The battery over-charge and over-discharge protections are designed to prevent such problems to extend battery life.

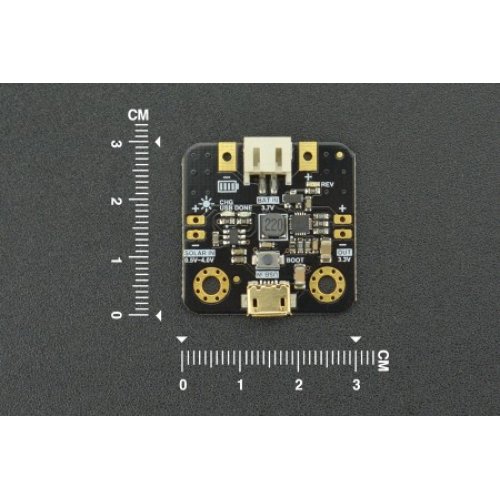

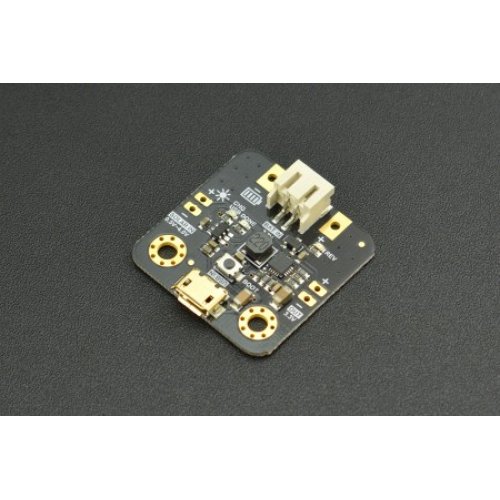

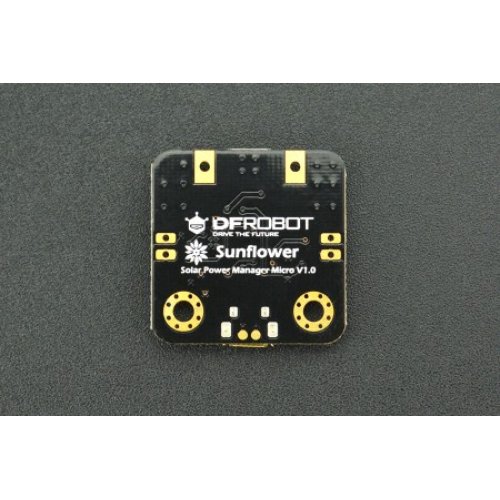

Board Overview





Connection Diagram





FEATURES :



Constant voltage ratio MPPT algorithm, maximizing solar power conversion

Designed for 1V ~ 3V small solar panels, ultra low power design

Solar/USB two charging methods

Multiple protections extending battery life



APPLICATIONS



Wireless Sensor Network

Bluetooth iBeacon

Solar Powered Toys



SPECIFICATION



Micro Solar Power Management Module

Solar Power Management IC: SPV1050

Solar Input Voltage (SOLAR IN): 0.5V~4V

Battery Input (BAT IN): 3.7V Lithium Battery

Maximum Charge Current: 100mA@USB IN；70mA@SOLAR IN

Over-charge Protection Threshold: 4.2V

Over-discharge Protection Threshold: 3.1V

Regulated Power Supply: 3.3V 90mA@BAT IN 3.7V

Quiescent Current: <3 uA



Protection Functions



       BAT IN: Over-discharge/Over-charge/Reverse Connection Protections

       OUT: Short Circuit/Over Current Protections

Operation Temperature: -40℃～85℃

Dimension: 30.0mm*30.0mm

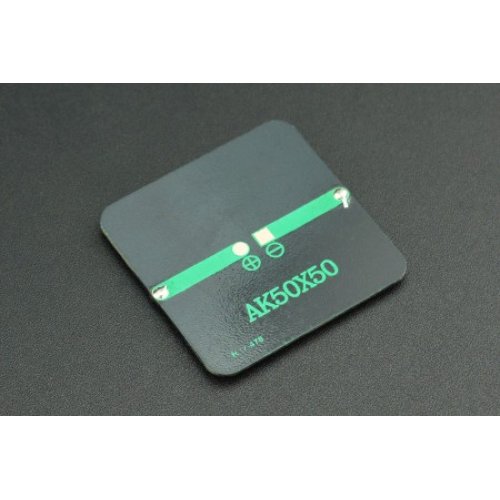

Solar Panel 2V 160mA



Nominal Voltage (VMP): 2V

Nominal Current (IMP): 160mA

Open Circuit Voltage (IOC): 2.4V

Short Circuit Current (ISC): 190mA

Solar Cell Material: Monocrystalline Silicon

Other Features: Waterproof, Oil Resistant and Corrosion Resistant

Dimension: 50mm*50mm

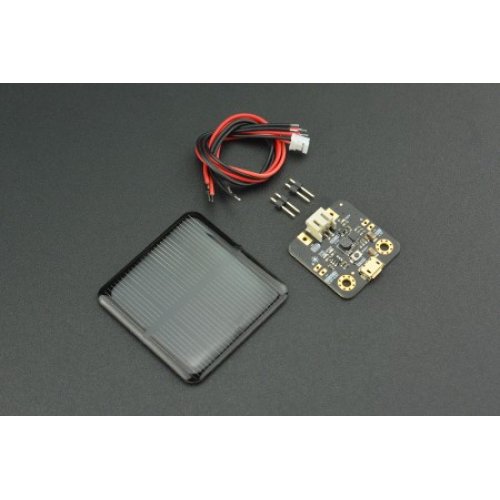

SHIPPING LIST



Solar Power Manager Micro                                                : x1

Monocrystalline Silicon Solar Panel 2V 160mA 50*50mm  : x1

Red Single Conductor Wire 15cm 24AWG                          : x2

Black Single Conductor Wire 15cm 24AWG                        : x2

PH2.0-2P Male Power Wire 15cm                                       : x1

XH2.54-2P Header                                                              : x2
