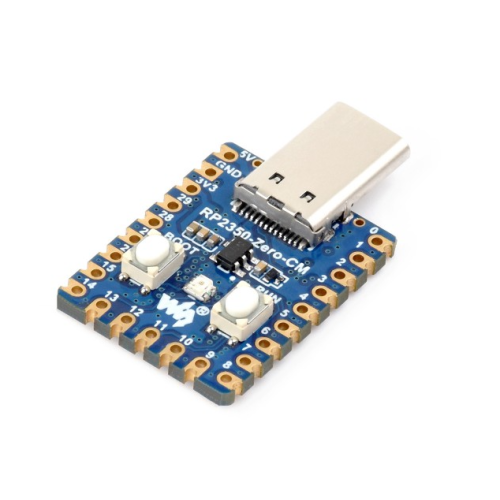

RP2350-Zero-CM Mini Development Board:

Adapting all GPIOs and onboard USB Type-C port, based on Raspberry Pi RP2350A

Castellated module, suitable for SMD applications

Specifications:

• RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
• Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor or dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
• 520KB Static RAM, and onboard 4MB Flash memory
• Type-C male port design
• Supports power supply via Type-C port (PD compatible)
• Castellated module allows soldering directly to carrier boards
• USB1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 29 × multi-function GPIO pins (20 × via edge pinout, others via solder points)
• 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
• Accurate clock and timer on-chip
• Built-in temperature sensor for real-time monitoring of chip temperature
• 12 × Programmable I/O (PIO) state machines for custom peripheral support

C/C++, MicroPython, Arduino support:

Comprehensive SDK, dev resources, tutorials to help you easily get started

dual-core, dual-architecture:

The unique dual-core, dual-architecture capability of RP2350 allows users to choose between a pair of industry-standard Arm Cortex-M33 cores, and a pair of open-hardware Hazard3 cores, giving developers a chance to experiment with the RISC-V architecture in a stable, well-supported environment

29 × multi-function GPIO pins:

configurable pin function, allows flexible development and integration

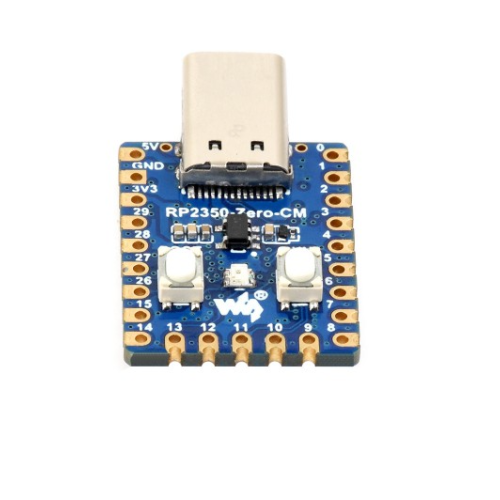

What's On Board:

• RP2350A : Dual-core and dual-architecture design, up to 150 MHz operating frequency
• 4MB NOR Flash : Debug interface
• RP2350A GPIO pins : Adapting 10 × solder points, including 9 GPIO pins
• USB Type-C male port : for downloading programs, USB 1.1 with device and host support
• ME6217C33M5G : Low dropout regulator, 800mA output (Max.)
• RUN reset button
• BOOT button : press it when resetting to enter download mode
• WS2812 : Cool RGB LED

Outline dimensions:

Resources & Services:

Documentations:

• Wiki

Package Includes:

• 1 x RP2350-Zero-CM
