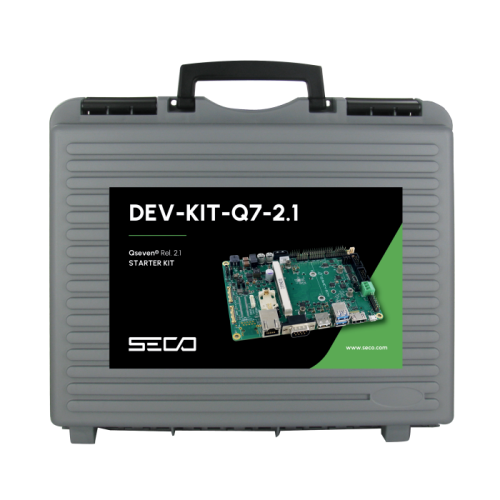

The Starter Kit contains: • CQ7-D59 (DP or HDMI® version) carrier board for Qseven® Rel. 2.0 / 2.1 compliant modules • HD audio module • I2S audio module • One 24VDC power brick adapter • Cable kit • Adapter for mounting a µQseven® module on standard Qseven® carrier boards (Module not included. Must be purchased separately)

Part Number: KTDV-Q7-D59-02.00

• Video Interfaces: LVDS Single/Dual Channel 18-24-bit + HDMI® connector, or 2 × eDP connectors + Multimode DisplayPort
• Mass Storage: 1 × SATA connector with HDD power connector; 1 × M.2 Socket 2 2242 Key B SSD slot; microSD slot on combo microSD + SIM connector
• Networking: 2 × Gigabit Ethernet connectors; 1 × M.2 Socket 2 2242/3042 Key B slot for WWAN cellular modem modules, connected to on-board miniSIM slot
• USB: 2 × SuperSpeed USB 5 Gbps Host ports on dual Type-A socket; 1 × USB 2.0 Host port on double Type-A sockets; 1 × USB 2.0 Host on internal M.2 socket; 1 × USB 2.0 OTG port on micro-AB socket, shared with USB 2.0 lanes of 1 × USB 3.0
• Audio: Audio interface on internal pin header
• Serial Ports: 4-wire RS-232 / RS-422 / RS-485 configurable serial port on DB9 male connector; 2 × RS-232 full-modem serial ports on internal header; CAN interface on PCB terminal block
• Other Interfaces: SPI internal pin header; LPC Bus internal pin header; 16 × GPIO signals on pin header via GPIO expander controlled via SM Bus or I2C; front panel header; 1 × 28-pin connector for additional features including I2C, ACPI signals, SMBus, watchdog, and thermal management; +12V tachometric FAN connector; optional debug USB port on miniB socket; optional MFG connector for JTAG programming of Qseven® module
• Power Supply: 24V DC ±5% through Micro-fit 2 × 2 power connector
• Battery: Coin-cell battery holder for powering CMOS and RTC
• Dimensions: 146 × 102 mm (5.75 × 4.02")
• Operating Temperature: -40°C to +85°C (Industrial temperature range)
