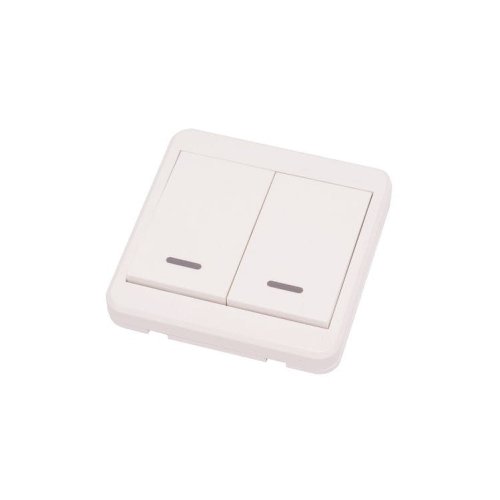

The easySwitchBox does one simple thing – it sends on\off signals to any relay, actuator, or other project. It can be used to trigger any event wirelessly and from a distance. It’s easy to program using the Arduino IDE, and communication is secured by an authentication chip. The easySwitchBox not only makes your project more effective, it also looks more professional.

Features & Specifications:

IDE Control: Fully compatible with the Arduino IDE
- Enumerates as an Arduino Pro Mini @ 8 MHz
- Compatible with all RFM 69 \ 95 compatible open source libraries available
Radio Transceivers: Three transceiver options are available
- HopeRF RFM95 LoRa® 433/868/915 MHz (long-range version)
- HopeRF RFM69-HCW 433/868/915 MHz (mid-range version)
- HopeRF RFM69-CW 433/868/915 MHz (low power consumption version)
Security: On-board Atmel/Microchip ATSHA204A crypto-authentication chip
- Provides secured handshakes
Antennas: Tuned PCB antenna options that are soldered to the main board
- 915 MHz - United States, Canada, Australia
- 868 MHz - Europe
- 433 MHz - Europe
Interface: Long-run soft-touch buttons similar to high-quality home switches
- Each button has a built-in LED for message delivery confirmation
Power: Utilizes two CR2032 coin cell batteries
- On-board coin cell holders
- Reverse polarity protection
- High-efficiency power converter
- Batteries can last as long as two years with daily use
Mounting: Two options are provided for mounting
- Pre-applied adhesive tape on the back
- Screws through holes in the back plate
Open Source Hardware: For all your hacking desires

Package Includes:

2 x easySwitchBox

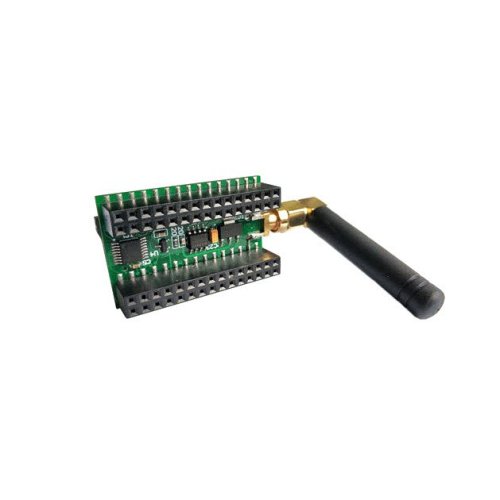

1 x Nano Radio Shield

easySwitchBox RFM95 LoRa

Brand: Crowd Supply
Product Code:CS-easySwitchBox
Reward Points:44
Availability:In Stock

रo 5,157.78
Ex Tax:रo 4,371.00
Price in reward points:4371
3 or more रo 5,116.48
6 or more रo 4,663.36
15 or more रo 4,370.72
30 or more रo 4,258.62

Available Options

Frequency

1) 868 Mhz

Qty

0 reviews / Write a review
