Delivering breakthrough lumen output and efficacy in the XM package, the XLamp XM-L2 LED is the highest-performing, commercially available, single-die LED. Built on the SC³ Technology Platform, the XLamp XM-L2 LED delivers up to 20% more lumens and lumens-per-watt and double the lumens-per-dollar of the original XM-L. The XM-L2 LED offers the unique combination of high efficacy and high lumen output at high drive currents, delivering an unprecedented 1198 lumens at 116 lumens-per-watt efficacy at 3 A, 25°C.

Features:

• Maximam drive current:  3000mA
• Low thermal resistance:  2.5C/W
• Maximum junction temperature:  150C
• Viewing angle:  125\'
• ANSI-compatible chromaticity bins
• Unlimited floor life at <30C/85% RH
• Reflow solderable-JEDES J-STD-020C
• Electrically neutral thermal path
• DC Forward Voltage (VF): 2.9-4Vdc
• DC Forward Current (IF) : 3.0A

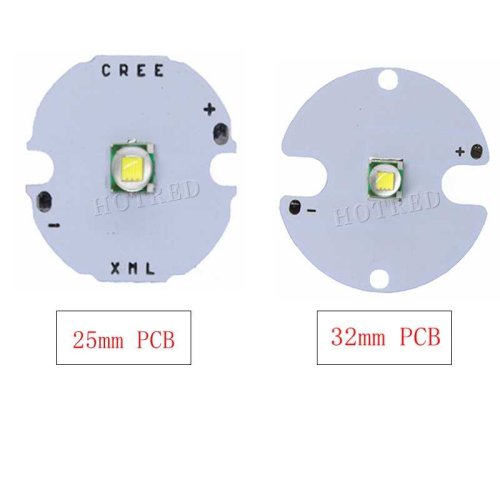

• Diameter : 32mm

Package Contents :

• 1x CREE XML XM-L T6 LED
