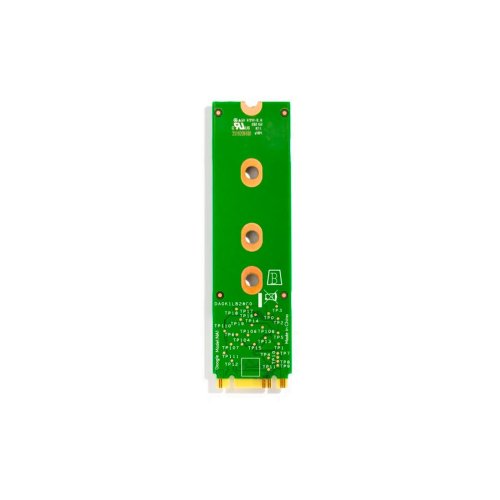

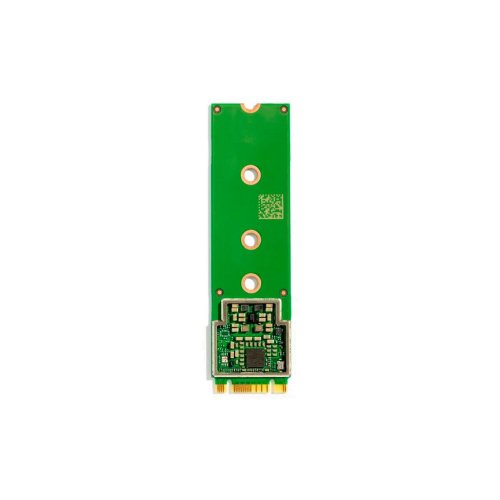

The Coral M.2 Accelerator is an M.2 module that brings the Edge TPU coprocessor to existing systems and products.

The Edge TPU is a small ASIC designed by Google that provides high performance ML inferencing with low power requirements: it's capable of performing 4 trillion operations (tera-operations) per second (TOPS), using 0.5 watts for each TOPS (2 TOPS per watt). For example, it can execute state-of-the-art mobile vision models such as MobileNet v2 at almost 400 FPS, in a power efficient manner. This on-device processing reduces latency, increases data privacy, and removes the need for constant high-bandwidth connectivity.

The M.2 Accelerator is a dual-key M.2 card (either A+E or B+M keys), designed to fit any compatible M.2 slot. This form-factor enables easy integration into ARM and x86 platforms so you can add local ML acceleration to products such as embedded platforms, mini-PCs, and industrial gateways.

Key Features :

Performs high-speed ML inferencing: The on-board Edge TPU coprocessor is capable of performing 4 trillion operations (tera-operations) per second (TOPS), using 0.5 watts for each TOPS (2 TOPS per watt). For example, it can execute state-of-the-art mobile vision models such as MobileNet v2 at 400 FPS, in a power efficient manner.
Works with Debian Linux: Integrates with any Debian-based Linux system with a compatible card module slo
Supports TensorFlow Lite: No need to build models from the ground up. TensorFlow Lite models can be compiled to run on the Edge TPU.
Supports AutoML Vision Edge: Easily build and deploy fast, high-accuracy custom image classification models to your device with AutoML Vision Edge.

Specification

Physical specifications
Dimensions	B+M key: 22.00 x 80.00 x 2.35 mm
Weight	B+M key: 5.8 g
Host interface
Hardware interface	M.2 B+M key (M.2-2280-B-M-S3)
Serial interface	PCIe Gen2 x1
Operating voltage
DC supply	3.3V +/- 10 %
Environmental reliability
Temperature	-40 ~ 85° C (storage) -20 ~ 70° C (operating)
Relative humidity	0 ~ 100% (non-condensing)
Mechanical reliability
Op-shock	100 G, 11ms (persistent) 1000 G, 0.5 ms (stress) 1000 G, 1.0 ms (stress)
Op-vibe (random)	0.5 Grms, 5 - 500 Hz (persistent) 3 Grms, 5 - 800 Hz (stress)
Op-vibe (sinusoidal)	0.5 Grms, 5 - 500 Hz (persistent) 3 Grms, 5 - 800 Hz (stress)
