PTT Speaker MIC Mini 2 Pin for Radio Transceivers

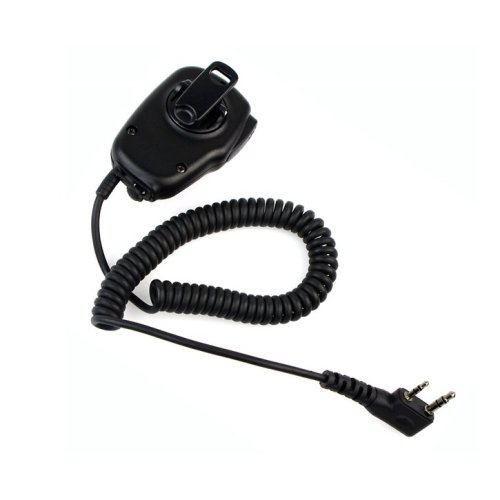

  • 360 degree swivel lapel clip on the back of the microphone.
  • The casing is made of high impact plastic with water resistant design for rugged use.

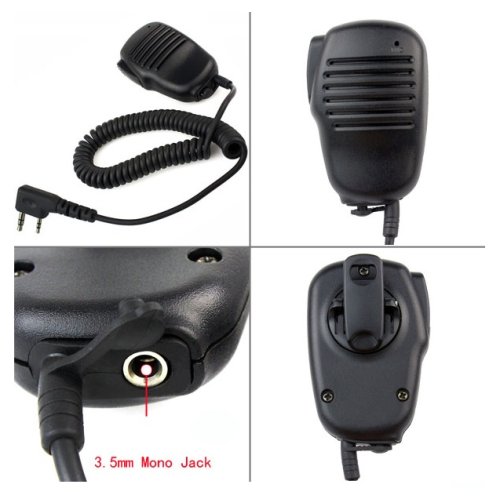

  • Includes a standard 3.5mm mono earphone jack at the bottom of the microphone covered with waterproof flap.
  • It enables you to talk and listen without having to move the radio. Just clip the mic where convenient and use it to listen and transmit.

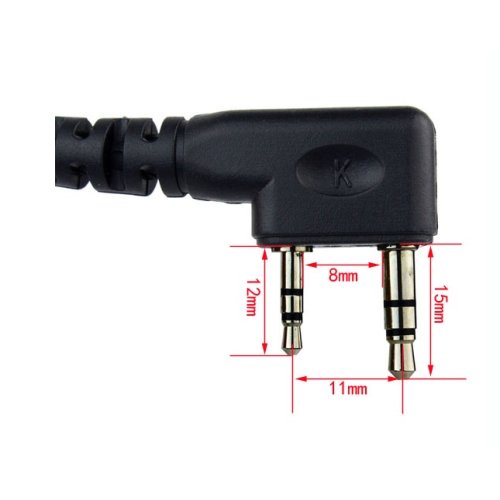

  • Two-pin standard diameter: Ear 3.5mm stereo (top pin). Mic 2.5mm stereo (bottom pin).
  • Space of two-pin: 11mm.

Specification:



Speaker:

  • Size: 36mm
  • SPL: 94dB ± 3dB
  • Impedance: 8 ± 15%
  • Audio: 1W

Microphone:

  • Type: electret microphone
  • Size: 9.7 * 6.7mm
  • Frequency: 20-16000HZ
  • Sensitivity:-38dB ± 2dB
  • Impedance: 2.2K

Compatible Model:



Type

Model

for Kenwood KPG

KPG27D, KPG29D,KPG48D, KPG49, KPG55D, KPG56D, KPG62D, KPG66D, KPG69D, KPG70D,KPG74D, KPG75D, KPG77D, KPG82D, KPG87D

for Kenwood TH

TH-D7, TH-D7A, TH-D7AG, TH-D7E, TH-F6, TH-F6A, TH-F7, TH-F7E, TH-G71, TH-G71A, TH-G71E, TH-K2, TH-K2A, TH-K2E, TH-K2ET, TH-21, TH-21AT, TH-21BT, TH-22, TH-22A, TH-22AT, TH-22E, TH-25, TH-26, TH-27, TH-28, TH31AT, TH31BT, TH41AT, TH41BT, TH-42, TH-42A, TH-42AT, TH-42E, TH-45, TH-46, TH-47, TH-48, TH-55, TH-75, TH-77, TH-G71, TH-205, TH-215, TH-225, TH-235, TH-235A, TH-235E, TH-315, TH-415,

for Kenwood TK

TK-208/308,TK-220/320,TK-240/340,

TK-240D/340D,TK-248/348,

TK-250/350/353,

TK-260/360,TK-260G/360G,

TK-270/370,

TK-270G/370G,

TK-272G/372G/373G,

TK-278G/378G/388GPro-Talk,TK-430/431, TK-2100/3100Pro-Talk,TK-2102/3102

Pro-Power,TK-2107/3107

Pro-Talk,TK2207,TK3207,TK-2160/3160,

for BAOFENG

Almost All: UV5R, BF-480/490/320/V6/V7/V8/658/520/530/999/888/777/666S/777S/888S

for HYT

TC286 386 2685 3865 6685, TC 278 378 388, TC 2100 2088

for WOUXUN/ PUXING/ QUSHENGAN /LINTON/TYT etc

Almost All with a two pin plug, former pin diameter of 3.5 mm and 2.5 mm in diameter after pin, double pin from 8 mm within, 11 mm center distance of 2 pin.



Write a review

Please login or register to review

PTT Speaker MIC Mini 2 Pin for Radio Transceivers

  • Product Code:PRC-PTT-Speaker-MIC
  • Reward Points:9
  • Availability:Out Of Stock
  • रo 920.00
  • रo 750.00

  • Ex Tax:रo 750.00
  • Price in reward points:895
