Electroluminecent wire, otherwise known as EL Wire, is a thin phosphor coated wire in a tube that lights up when you apply a high AC voltage to it. EL Wire typically needs anywhere between 20Vac to 220Vac, at a very low current. We have 10 different colors of EL Wire to choose from.

Applications:

• Indoor and outdoor advertisement, picture and logo, shop window, door, furniture, wall, roof, etc.
• Car, boat and other vehicles decoration: inside and outside decoration, number display.
• Safety sign and guidance: stair, passage, doorplate, temporary marks.
• Toy, art and handcraft, sport article, garment, electrical appliance

Specification

• Operating Voltage Range：20～220V
• Optimum operating voltage：120V
• Frequency range: 50-5000Hz
• Optimum working frequency :1500-2000Hz
• Direct capacitance：6nf/m（20℃，RH< 80%）
• Glow Brightness：Voltage：120V，Frequency：200Hz～2000Hz：30cd/m2～126 cd/m2
• Consumed Power：Voltage：120V，Frequency：200Hz～2000Hz：108mw/m～1032mw/m
• Working Life：Voltage：100V，Frequency：400Hz，Normal Temperature and Humidity，Around 5000Hrs
• Continous Working Temperature/Relative Humidity：-10℃～+60℃ ；RH< 90%
• Storage Temperature/ Relative Humidity：-10℃～+60℃；RH< 65%
• Diameter: 3mm(0.12")
• Length: 3 meter(118.11")
• Colour:grag blue

Package Includes:

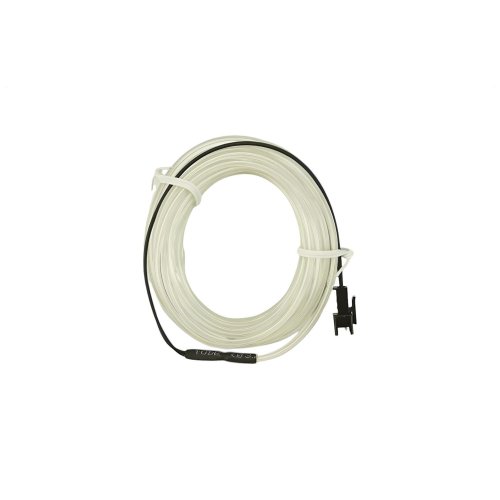

• 1 x 3 meter EL Wire
