• IEEE 802.11 a/b/g/n/ac/ax compliant
• Support 20 MHz, 40 MHz, 80 MHz bandwidth in 2.4 GHz, 5 GHz, 6GHz band
• Support Bluetooth 5.2
• Dual-band 2T2R mode
• Support STBC, LDPC, TX Beamforming, and RX Beamforming
• Bluetooth v5.2 with BLE (BT low energy)
• Support BT/BLE dual mode
• Support BT/Wi-Fi coexistence

Keypoint

• MediaTek MT7921AUN chipset
• 2x Wi-Fi IPEX connector
• 2x BT IPEX connector
• Mini PCIe interface (USB 2.0)

Specifications:

• Chipset : MediaTek MT7921AUN
• IEEE 802.11 : a/b/g/n/ac/ax
• Frequency : 2.4 GHz
• 5 GHz
• 6 GHz
• Bluetooth : v5.2
• Data rate : 11b: 1, 2, 5.5, 11 Mbps
• 11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
• 11n: up to 300 Mbps
• 11ac: up to 866.7 Mbps
• 11ax: up to 573.5 Mbps
• 11ax: up to 1201 Mbps
• Form factor : Full size mini PCIe (USB bus)
• Antenna connector : 2x IPEX (Wi-Fi)
• 2x IPEX (BT)
• Dimensions : 30 x 51 x 7 mm
• Operating temperature : -25°C - 75°C
• Operating systems : Microsoft Windows 10/11
• Linux

Package Includes:

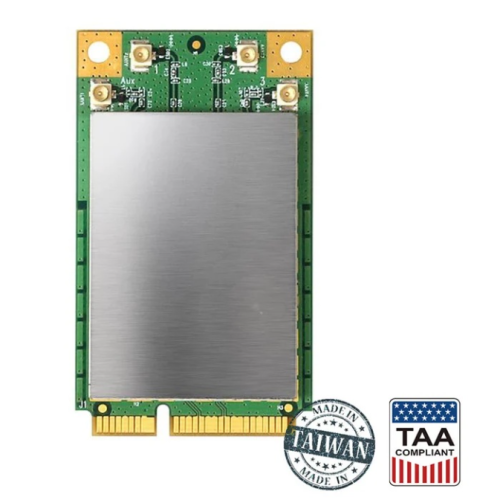

• 1 x Alfa AWPCIE7921U AWPCIE7921U is a WiFi 6E 2x2 dual-band WLAN and Bluetooth v5.2 mini PCIe module
