EL Wire, also known as Electroluminescent wire is a stiff wire core coated with phosphor and then covered with a protective PVC sheath. When an AC signal is applied to it, it glows an aqua (blue green) color. You can make it look different colors by changing the coating, for example this is a vivid yellow. It looks a little like thin neon. Very bendable, it keeps its shape and you can curl it around your finger. Its an easy way to add some glow to a project, not as bright as LEDs but uses a lot less power!

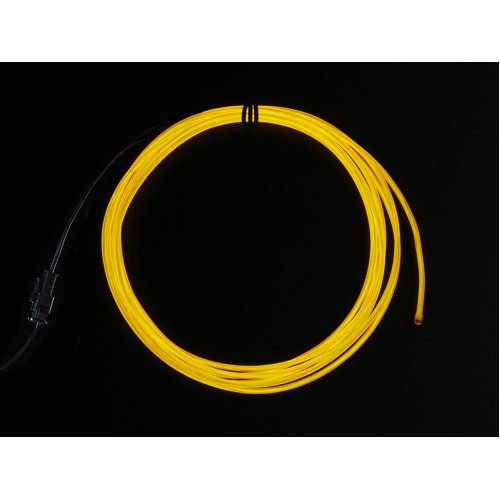

We've got 2.6mm thickness EL wire, with a yellow coat, pre-cut and soldered to a standard quick-connect EL wire. It is made with the latest technology and twice as bright as 'standard' 2.3mm EL - running it at 1.5KHz/90V it emits 88 cd/m^2 or light and a half-life (50% brightness reduction) after 3000 hours of continuous use. Draws about 10mA per meter. The capacitance is about twice that of 'standard' EL, 11 nF/m so if you're using an inverter, it will drive only half as much high brightness wire as standard.

Documents:

Datasheet

Warranty: 30 days

Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

1 x Adafruit 403/404/405/406/407/408/409/410 High Brightness Electroluminescent (EL) Wire - 2.5 meters

Adafruit 403/404/405/406/407/408/409/410 High Brightness Electroluminescent (EL) Wire - 2.5 meters

Brand:: Adafruit
Product Code: :Ada-EL-Wire-2-5m
Reward Points: :7
Availability: :In Stock

रo 713.67
Price in reward points: 753
45 or more रo 625.27
240 or more रo 622.11

Available Options

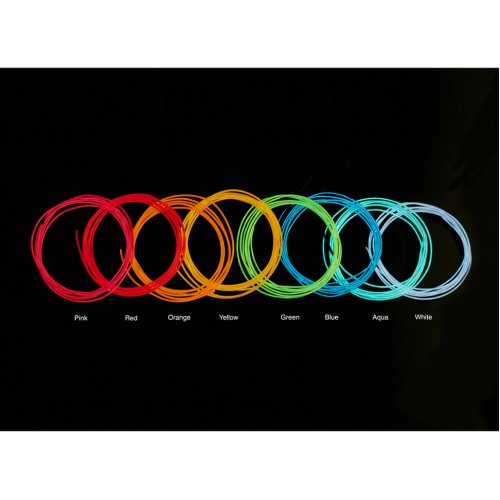

Color

7) Aqua

8) White

9) Blue

10) Red

11) Green

14) Yellow

23) Pink

24) Orange

Qty

0 reviews / Write a review
