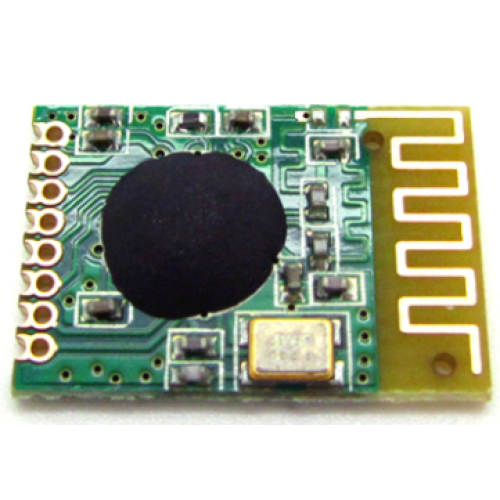

CC2500 Wireless Module Small Size 2.4GHz Wireless Transceiver Module
Description:
2400-2483.5 MHz ISM/SRD band systems:
Application
- Consumer electron
- Wireless audio
- Wireless keyboard and mouse
-
RF enabled remote controls
-
Wireless game controllers
Main function is as follows:
- Work frequency: 2.4GHz
- Word distance: more than 30 meters
- Antenna: PCB antenna
Specifications :
- RF Tx Current: 21mA
- RF Rx Current: 17mA
- Interface : SPI,
- Temperature :-40 to +85
- Work Voltage:1.8-3.6 V.
- Effective frequency: 2400-2483.5 MHz ISM/SRD wave band
- output power programmable
- Data rate: up to 500 kbps.
- 32s are programmable
- Size: 12*18*2 mm.
Package Includes :
1 x CC2500 Wireless Transceiver Module
CC2500 Wireless Module Small Size 2.4GHz Wireless Transceiver Module
- Product Code:PRC-CC2500-2.4GHz-Wireless-Module
- Reward Points:3
- Availability:Out Of Stock
-
रo 351.64
- Ex Tax:रo 298.00
- Price in reward points:298
