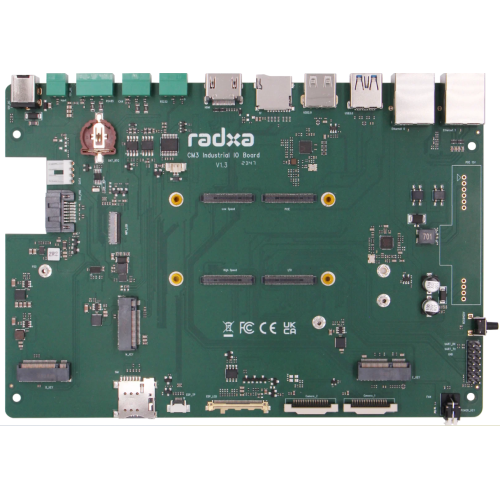

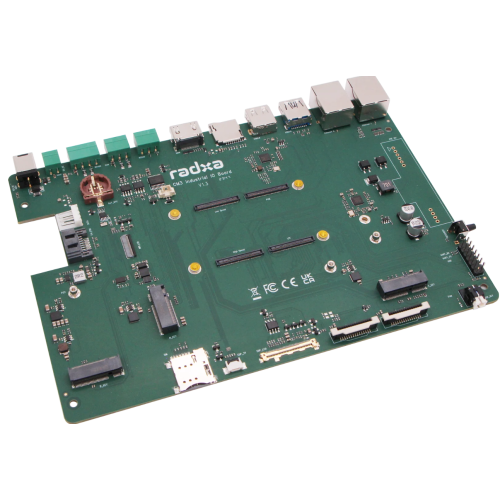

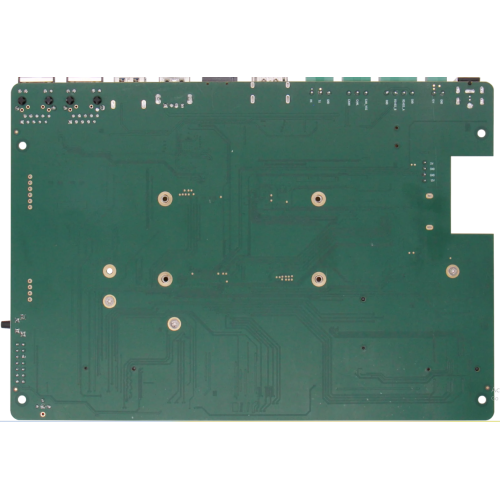

Radxa CM3I IO Board is an application board for the Radxa CM3I Compute Module

Powered by the CM3I module - the Radxa CM3I IO board enables access to the complete feature set this Computing Module provides.

Features:

• Designed for Radxa CM3I
• Half mini-ITX design (170*85mm), compatible to standard ATX case
• Multiple display interfaces, HDMI, 1x MIPI DSI, eDP with touch panel
• 1x SATA
• Ubuntu/Debian and Android support

Technical Details:

• Supported CM´s
• RADXA CM3I (J)
• Connectivity
• 1 x USB 2.0 HOST Type-A port
• 1 x USB 3.0 OTG Type-A port
• 1 x PCIe 1-lane Host, Gen 2 ( 5Gbps, x1 PCIe connector )
• 1 x SATA 7P connector
• 1x microSD card
• 1x RS232
• 1x RS485
• 1x CAN
• 1x M.2 E Key Connector for WiFi /BT
• 1x M.2 B Key Connector with SIM card for 4G Mobile Network
• 1x SIM card slot for 4G Mobile Network
• Networking
• 2x Gigabit Ethernet RJ45 ( 1x with PoE support)
• Video
• 1x HDMI
• 1x eDP with touch panel
• 1x MIPI DSI
• Camera
• 2x MIPI CSI
• Storage
• 1x Micro SD Card
• 1x SATA 3.0 with PSU
• 1x M.2 M Key Connector for 2280 NVMe SSD
• Other
• RTC battery seat
• 14 pin GPIO header
• 1x FAN header 4-pin
• 1x Recovery Button
• 1x Power Button
• Power
• DC 12V 2.5/5.5mm
• Dimension
• 160 mm × 90 mm
• Product lifetime
• Radxa CM3I IO Board will remain in production until at least Sep 2029

Package Includes:

• 1 x RADXA CM3I IO Board - RC120
