Nano Base Board (B) for CM5:
Suitable For Evaluating The Raspberry Pi CM5 Or Being Integrated Into End Products
Base Board for Compute Module 5 Lite / eMMC
Version Options:
CM5-NANO-B standard version CM5-NANO-B-M with pre-soldered header
Same Size As The CM5:
Compact size and fully functional, With Multiple Peripheral Interfaces, Suitable for Narrow Application Environments
Specifications:
- CM5 socket : Suitable for all variants of Compute Module 5
- Networking : Gigabit Ethernet RJ45 connector
- Connector : Raspberry Pi 40PIN GPIO interface × 1
- USB : USB 3.2 Gen1 Type A port × 1
- MIPI : MIPI 4-lane interface × 2 (22pin 0.5mm FPC connector)
- Video : Mini HDMI port × 1, supports 4K output
- Audio : USB audio 3.5mm jack
- Storage : TF card socket for Compute Module 5 Lite (without eMMC) variants
- Power input : DC 5V 5A
- PCIe : 16PIN PCIe connector (PCIe Gen2/3 x1)
- Dimensions : 55 × 41mm

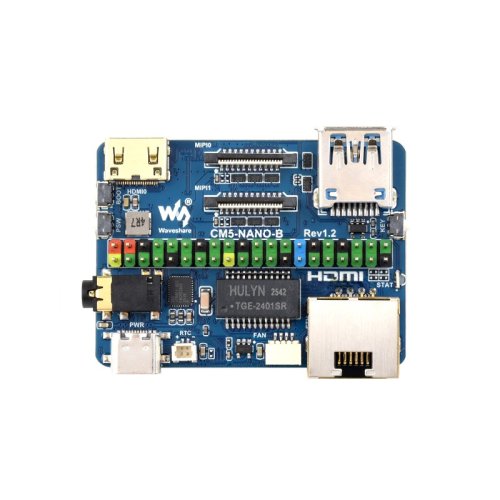

What's On Board:
- CM5 socket : Suitable for all variants of Compute Module 5

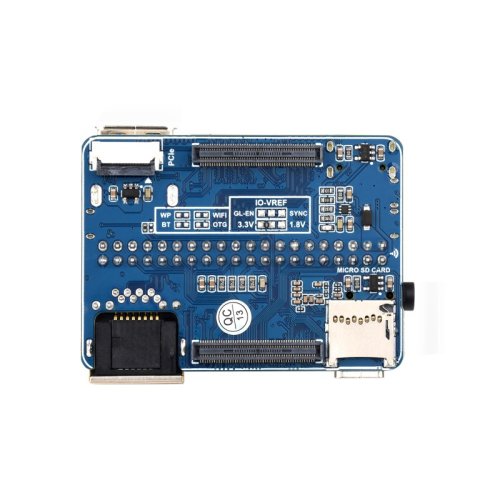

- PCIe interface : 16PIN PCIe connector, for connecting sorts of PI5 PCIe adapter boards
- TF card slot : for connecting a TF card with pre-burnt image (Lite variant ONLY)
- Other function pins : Supports for extended functions
- Mini HDMI port : Supports 4K output
- BOOT button : Press before powering on and release after powering on to enter the burning mode
- PSW button : power button
- 3.5mm jack : Audio output
- Power supply / Programming : 5V power supply, or used for eMMC burning
- 2PIN JST-SH RTC battery header
- FAN header : 4PIN JST-SH PWM fan header for connecting a cooling fan
- RJ45 Gigabit Ethernet port : for network access
- Dual-color LED indicator : Red light: Raspberry Pi power indicator
- Green light: Raspberry Pi working status indicator
- User button : connected to GPIO21
- USB port : USB 3.2 Gen1 high speed interface, for connecting sorts of USB devices
- Dual MIPI interfaces : for connecting to DSI displays or CSI cameras
- 40PIN GPIO interface : suitable for connecting to various HAT modules
Outline dimensions:
About Compute Module 5:
Newly upgraded, more powerful:
- Upgraded processor BCM2712, quad-core Cortex-A76 64-bit SoC, more powerful performance
- More options for RAM (2GB / 4GB / 8GB / 16GB)
- More options for eMMC Flash (0GB (Lite) / 8GB / 16GB / 32GB / 64GB)
- Faster eMMC Flash storage, up to 200 Mbps data rate
- Optional for certified radio module, supports either PCB trace antenna or external antenna, more suitable for industrial applications
- Adopts B to B connectors, most compatible with Compute Module 4
- Onboard Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
- Onboard PCIe Gen 2 x1 interface, allows connecting more useful modules
Resources and Services:
Documents:
Package Includes:
- 1 x CM5-NANO-B
- 1 x 2*20PIN color-coded straight pinheader
OR
- 1 x CM5-NANO-B with pre-soldered headers(Option)
WhatsApp

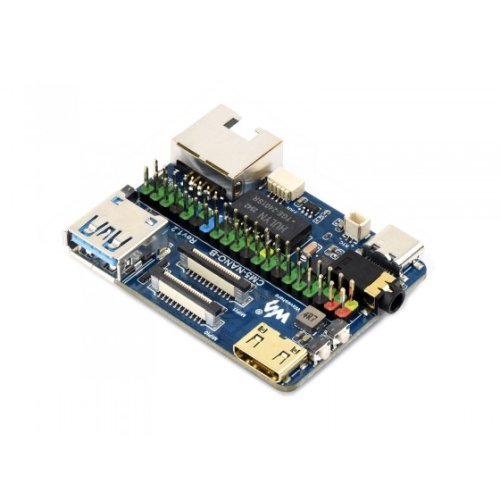

Waveshare 30581/33760 CM5-NANO-B Mini Expansion Board For Raspberry Pi Compute Module 5, Same Size As The CM5, Supports 4K HDMI, USB 3.2, Gigabit Ethernet Port, Dual MIPI Interfaces
