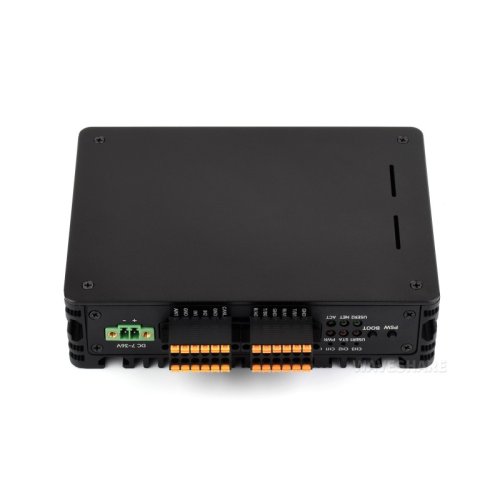

Industrial Computer based on

Compute Module 5

Designed for Raspberry Pi Compute Module 5

Version Options:

                CM5-HMI-BOX-A                                       CM5-HMI-BOX-B

           Onboard 4 × RS485 interfaces                  Onboard 2 × RS485 + 2 × RS232 interfaces

All versions come with an aluminum alloy case and power supply adapter,

please refer to the package content for the detailed part list.

Specifications:

• CM5 socket : Suitable for all variants of Compute Module 5
• Networking : 1000M Ethernet RJ45 port
• USB : USB 3.2 Gen1 port × 2
• USB 2.0 port × 2
• Video : HDMI port × 1, supports 4K display output
• M.2 : M.2 M KEY (PCIe Gen2/3 × 1, 2230 / 2242 / 2260 / 2280)
• M.2 B KEY, supports connecting 4G / 5G communication module
• Storage : TF card socket for Compute Module 5 Lite (without eMMC) variants
• Serial Interface : Options for 2 × RS485 + 2 × RS232 version or 4 × RS485 version
• 1 × CAN with up to 1Mbps communication rate
• Digital Input/Output : 2 × digital outputs + 2 × digital inputs
• Analog Input : 2 × ADC analog inputs
• (Supports 4 ~ 20mA current acquisition by desoldering components)
• Fan header : 5V, 2 × 4PIN JST-SH PWM fan headers (Select one)
• Buzzer : 1-ch controllable buzzer
• Other : Onboard EEPROM and encryption chip
• Power Input : 7V ~ 36V wide voltage range screw terminal, 5V 5A Type-C port
• Dimensions : 132.50 × 92.00 × 34.50 (mm)

Connecting with Compute Module 5

standard CM5 socket suitable for Compute Module 5 Lite / eMMC series module

4G / 5G module compatibility

compatible with communication modules with M.2 B KEY interface

Supports connecting to M.2 NVMe Drive

Faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive

Applicable M.2 drive sizes:

NVMe Drive Slot Support:

Precise cut-out with clear label:

each cut-out is completely aligned with the connector

Supports Rail mounting and VASE mounting

Reserved Rail-mount buckle and VASE mounting holes for more convenient installations

Heat Dissipation Design:

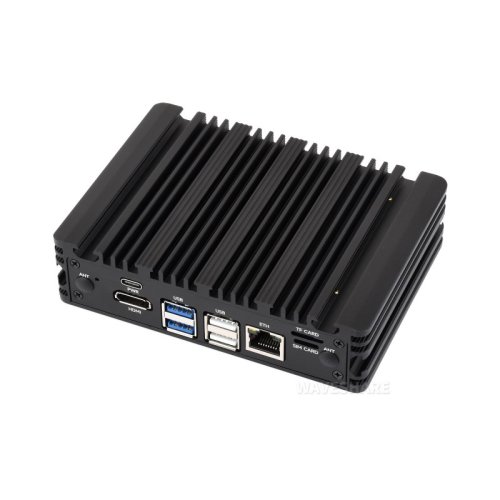

Aluminum alloy case enables large-area heat conduction and dissipation, combined with heat sink fins, better heat dissipation

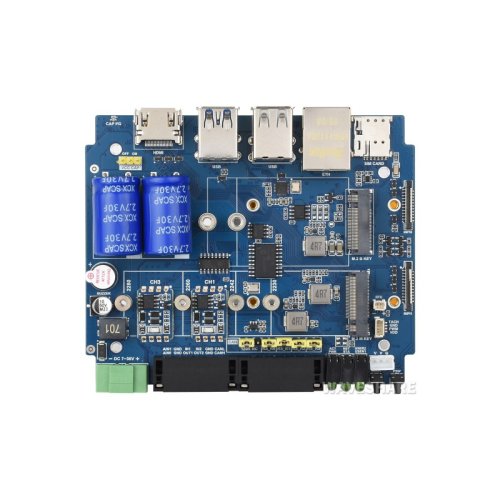

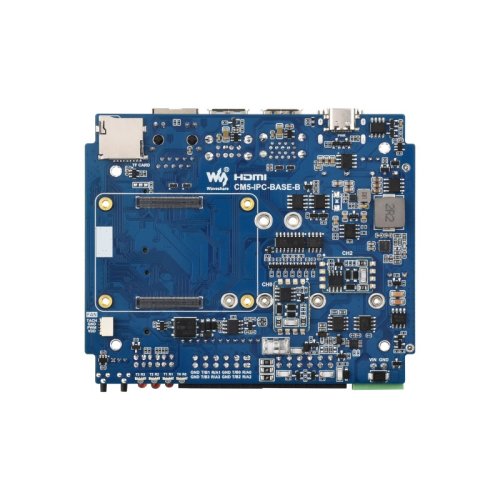

What's On Board:

• CM5 socket : suitable for all variants of Compute Module 5
• TF card slot : for connecting a TF card with pre-burnt system (Lite variant ONLY)
• Type-C port : for power supply, eMMC flashing, or USB OTG
• FAN connector : for connecting cooling fan, 5V, 4PIN JST-SH PWM fan connector (parallel with fan connector ⑧, only one connector can be used to connect a fan at a time)
• Serial communication indicators
• Dual MIPI interfaces : for connecting to DSI displays or CSI cameras
• RTC Batt header : supports RTC Batt for powering the RTC
• FAN connector : for connecting cooling fan, 5V, 4PIN JST-SH PWM fan connector (parallel with fan connector ④, only one connector can be used to connect a fan at a time)
• 5V output header
• PSW power button : Long press to force power off, short press to soft power off or on
• BOOT button : press before powering on to enter the burning mode
• System function indicators
• M.2 M KEY : supports 2280 / 2260 / 2242 / 2230 NVMe Solid State Drives or AI modules
• M.2 B KEY : supports connecting 4G/5G communication module
• RS485 terminal resistor jumper : No function for RS232
• RS485 / RS232 interface : Options for 2 × RS485 + 2 × RS232 version or 4 × RS485 version
• CAN terminal resistor jumper
• Multi-function interface : 1 × CAN interface with up to 1Mbps, 2 × digital inputs, 2 × digital outputs, and 2 × analog inputs
• DC power screw terminal : supports DC 7V ~ 36V power supply
• Buzzer
• Power-Loss protection capacitors
• Charging enable jumper : Set the jumper to ON to charge the supercapacitor. Charging automatically stops when the capacitor is fully charged
• HDMI port : supports 4K output
• Dual USB 3.0 ports : 2 × USB 3.2 Gen1 Type-A port with up to 5Gbps rate
• Dual USB 2.0 ports : 2 × standard USB 2.0 Type-A port
• 1000M Ethernet RJ45 port : supports 10M / 100M / 1000M network connections
• Nano SIM card slot

How to install:

Application Example:

Suitable for Raspberry Pi applications in remote communication or other industrial situations

Outline dimensions:

About Compute Module 5:

Newly upgraded, more powerful

• Upgraded processor BCM2712, quad-core Cortex-A76 64-bit SoC, more powerful performance
• More options for RAM (2GB / 4GB / 8GB / 16GB)
• More options for eMMC Flash (0GB (Lite) / 8GB / 16GB / 32GB / 64GB)
• Faster eMMC Flash storage, up to 200 Mbps data rate
• Optional for certified radio module, supports either PCB trace antenna or external antenna, more suitable for industrial applications
• Adopts B to B connectors, most compatible with Compute Module 4
• Onboard Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
• Onboard PCIe Gen 2 x1 interface, allows connecting more useful modules

Resources and Services:

Documentations:

• WIKI

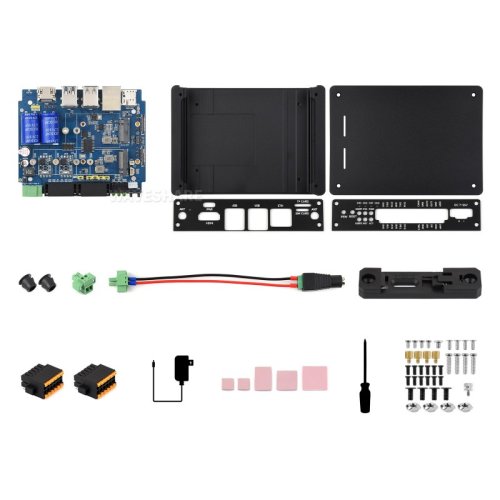

Package Includes:

CM5-HMI-BOX-A

• 1 x CM5-IPC-BASE-B-4RS485 baseboard
• 1 x CM5-HMI-BOX-B metal case
• 2 x Antenna rubber plug 6mm
• 1 x 2PIN 3.5mm pitch screw terminal
• 1 x Power adapter cable 15cm
• 1 x Rail-mount buckle
• 1 x 6PIN 3.5mm pitch double-layer terminal block (2PCS)
• OPTIONS 1 x 12V 4A power
• 1 x Pink thermal tapes
• 1 x Screwdriver
• 1 x Screws pack
