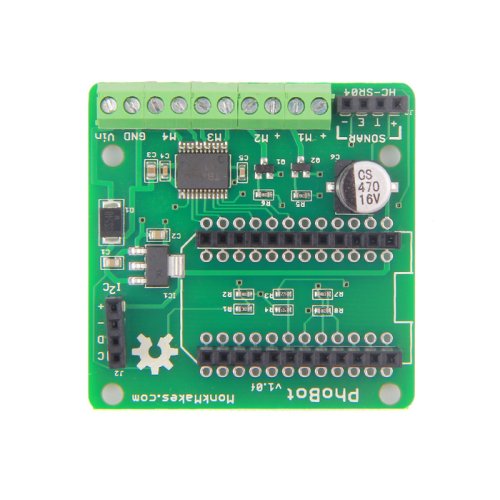

• PhoBot

A simple to use motor shield for the Spark Core and Photon. This board is designed to simplify the process of making small roving robots using a Photon or Spark Core. The shield is designed to be used with low cost robot chassis to make simple autonomous robots.

 Features

  • Dual bi-directional motor control using TB6612FMG dual H-bridge

  • Dual open drain 2A MOSFET outputs

  • Socket for HC-SRo4

  • Socket for 5V I2C Interface

  • Provides 5V regulated power to Photon or Core

 Specification

  • Max. Input voltage: 12V

  • Min. Input voltage: 6V

  • Max. Current M1 and M2: 2A

  • Max. current I2C 5V supply: 80mA

 Part List

  • 1 x PhoBot v1.0

 The board has an accompanying C library that can be found on GitHub here

For technical support and suggestions, please visit forum.



Write a review

Please login or register to review

PhoBot

  • Brand: Particle
  • Product Code:Seeed-PhoBot
  • Reward Points:6
  • Availability:In Stock
  • रo 600.00

  • Ex Tax:रo 600.00
  • Price in reward points:600
