Particle - Bluz DK:

A Bluetooth Low-Energy (BLE) development kit created by our awesome partners at Bluz.

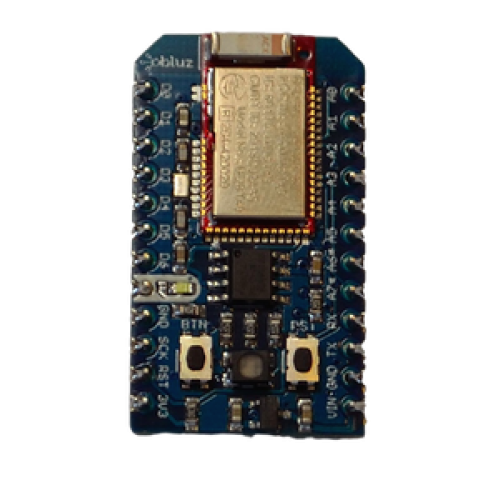

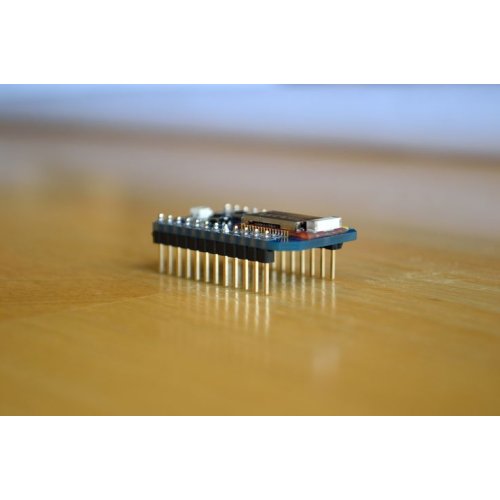

The Bluz DK is a Bluetooth Low-Energy (BLE) development kit created by our awesome partners at Bluz. The Bluz DK leverages its Bluetooth connection to connect to the Particle Cloud, publish and subscribe to online events, trigger webhooks, and its update firmware over the air. BLE has a range of 60 to 200 feet, making it perfect for wearables and proximity-based projects, both indoors and outdoors.

BLE also consumes much less power than cellular or Wi-Fi, so your project can last for months or even years on a coin cell battery, all while being connected and accessible from the Particle Cloud.Bluz DK is compatible with all Particle development tools, including Build, our online IDE, and our developer Dashboard. These puppies are in limited supply--get yours today!These puppies are in limited supply--get yours today!

SPECS:

Nordic Semiconductor nRF51822 SoC

• ARM Cortex M0, 16MHz
•  32KB RAM, 256KB FLASH
•  Bluetooth LE 4.0
•  10 bit ADC
• 256KB External FLASH
• 3.0V-6V (3.3V compatible)

POWER AND RANGE:

Power Consumption:

•  Connected/Standby: 60uAz

•  Transmitting Max: 18mA

Range (subject to environment):

•  Indoors: 60-100 feet

•  Outdoors: 150-200 feet
