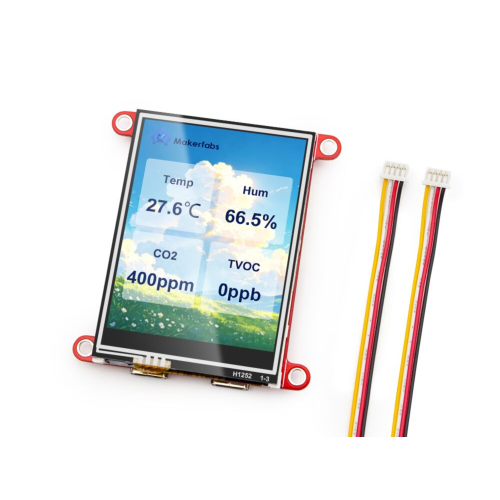

ESP32S3 based 2.4“ display with resistive touch, suitable for ESP32 IOT applications
This display features:
- Controller: ESP32-S3 controller 16M flash, 8M PSRAM;
- Display: 2.4", 320x240 resolution , driver ST7789V2, SPI interface
- Touch Panel: Resistive, NS2009
- USB: 1 * USB_native, 1 *USB-to-UART
- USB-UART Driver: CH340K
- Power Supply: USB Type-C 5.0V(4.0V~5.25V); 3.7V Lipo battery
- Expansion interface: 2*JST1.25mm-4P GPIO, with cable included
- MicroSD Card Slot
- LCD Backlight control: Yes
- Arduino support: Yes
- LVGL support: Yes
- Operation temperature: -40℃ to +85℃
Documentations:
Package Includes:
- 1 x MakerFabs MALI24R MaTouch Lite ESP32-S3 SPI Resistive Touch 2.4" ST7789
WhatsApp
MakerFabs MALI24R MaTouch Lite ESP32-S3 SPI Resistive Touch 2.4" ST7789
- Brand:: Makerfabs
- Product Code: :MakeF-MALI24R-MaTouch
- Reward Points: :15
- Availability: :In Stock
-
रo 1,579.59
- Price in reward points: 1580
-
- 6 or more रo 1,516.33
- 11 or more रo 1,504.08
- 21 or more रo 1,491.84
- 53 or more रo 1,479.59
- 105 or more रo 1,467.35
