Introducing the SDRlab 122-16 Standard Kit, an affordable and versatile open-source digitizer designed for creating your own SDR transceiver. This kit combines FPGA and CPU technology, offering a perfect blend of real-time processing and CPU flexibility.

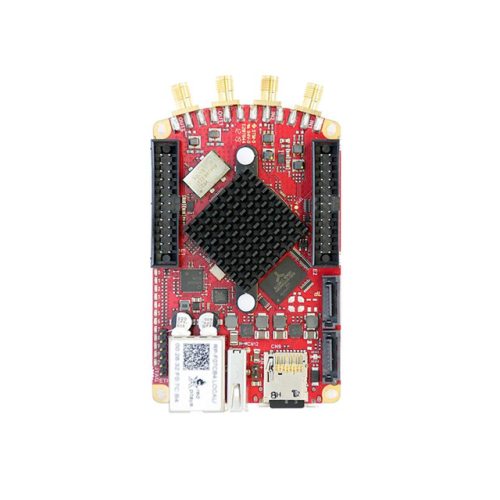

SDRlab 122-16 was developed specifically for software-defined radio and more demanding RF applications. It comes with two 16-bit 50-ohm inputs and 14-bit 50-ohm outputs, Xilinx Zynq 7020 FPGA for real-time processing capabilities plus an ultra-low phase noise 122.88MHz clock which makes it more hardware-compatible with HPSDR compliant applications. RF inputs are optimized for minimal distortion, noise and crosstalk which significantly improves reception and broadens the choice of antenna.

Specifications:

• RAM: 512 MB (4 Gb)
• System Memory: MicroSD card up to 32 GB
• Ethernet: 1 Gbit
• USB: USB 2.0
• Wi-Fi: Via Wi-Fi dongle
• RF Inputs
• Channels: 2
• Sample Rate: 122.88 MS/s
• ADC Resolution: 16-bit
• Full-Scale Voltage: 0.5 Vpp / -2 dBm
• Input Coupling: AC
• Bandwidth: 300 kHz – 550 MHz
• Input Impedance: 50 Ω
• RF Outputs
• Channels: 2
• Sample Rate: 122.8 MS/s
• DAC Resolution: 14-bit
• Full-Scale Voltage: ±0.5 V / +4 dBm
• Load Impedance: 50 Ω
• Short-Circuit Protection: N/A; RF transformer & AC coupled
• Bandwidth: 300 kHz – 60 MHz
• Extension Connector
• Digital I/O: 16
• Analog Inputs: 4 channels, 0–3.5 V, 12-bit
• Analog Outputs: 4 channels, 0–1.8 V, 12-bit
• Communication Interfaces: I²C, SPI, UART
• Available Voltages: 4 V, 3.3 V, 5 V
• Trigger Input: Through extension connector
• Synchronization
• Daisy Chain Connection: Over SATA connection
• Reference Clock Input: N/A
• General
• Use Cases: Industry, Radio Amateurs
• Weight: 0.4 kg
• Dimensions: 20 × 12 × 7 cm

Package Includes:

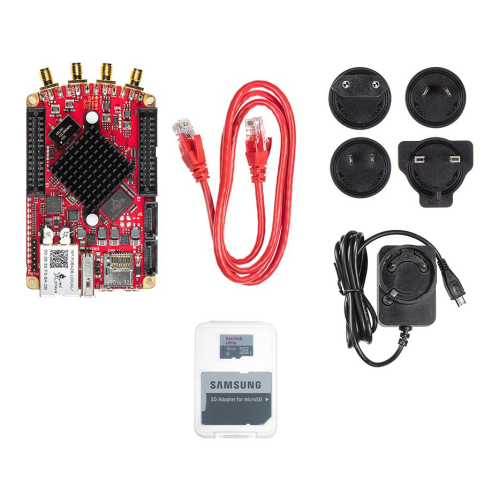

• 1 x IZD0021 Board(s), Cable(s), Power Supply, Accessories
