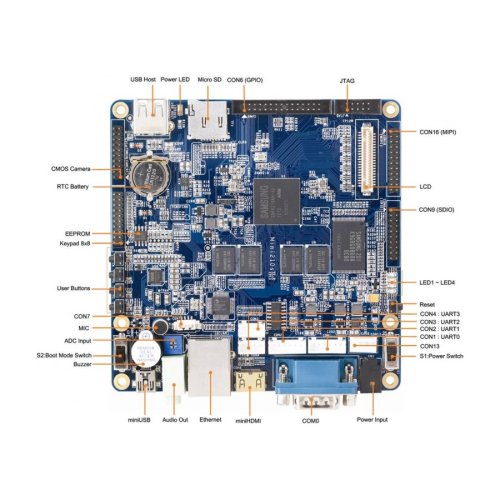

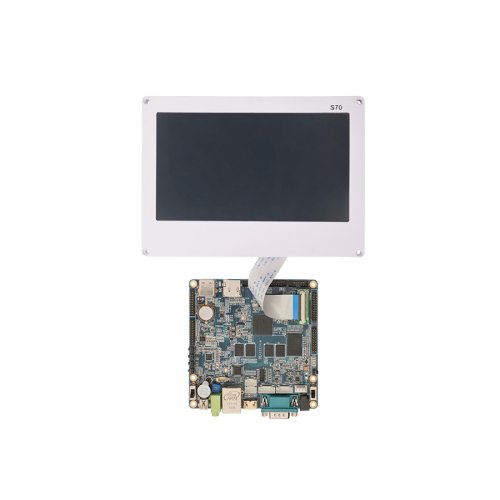

Mini210S (1G Flash) + 7"LCD resistive LCD (S70) + Standard Accessories
- Dimension: 110 x 110 mm
- CPU: 1GHz Samsung S5PV210 with PowerVR SGX540 graphics engine
- RAM: 512 MB, 32 bit Bus
- Flash: up to 2GB NAND Flash
- EEPROM: 256 Byte (I2C)
- Ext. Memory: microSD-Card socket
- Serial Ports: 1x DB9 connector (RS232), total: 4x serial port connectors
- USB: 1x USB-A Host 2.0, 1x miniUSB Slave/OTG 2.0
- Audio Output: 3.5 mm stereo jack, connector for a speaker (Class D Amp)
- Audio Input: Condenser microphone
- Ethernet: RJ-45 10/100M (DM9000)
- RTC: Real Time Clock with battery
- Beeper: PWM buzzer
- Camera: 2x 20 pin (2.0 mm) Camera interface
- Monitor: miniHDMI
- LCD Interface: 24 pin (2.0 mm) MIPI and 41 pin connector for FriendlyARM Displays
- User Inputs: 4x push buttons and 1x A/D pot
- User Outputs: 4x LEDs
- Expansion: 40 pin GPIO, 20 pin SDIO (SD, SPI, I2C), 20 pin Buttons/Keypad (2.0 mm)
- Debug: 10 pin JTAG (2.0 mm)
- Power: regulated 5V (DC-Plug)
-
OS Support
- Windows CE 6
- Linux
- Android
downloads
210 CPU's Datasheet:http://www.mediafire.com/view/t5xgfce4rhwq4c4
Mini210S V1.0 1213 Schematic: http://www.m
Mini210S V1.0 1213 Dimension: http://www.m
WhatsApp
Mini210S (1G Flash) + 7 inch LCD resistive LCD (S70) + Standard Accessories
- Brand:: FRIENDLYARM
- Product Code: :FARM-Mini210S-1G
- Reward Points: :178
- Availability: :In Stock
- रo 18,005.27
-
रo 15,246.32
- Price in reward points: 18151
-
- 2 or more रo 17,860.00
- 4 or more रo 17,714.73
- 8 or more रo 17,569.47
