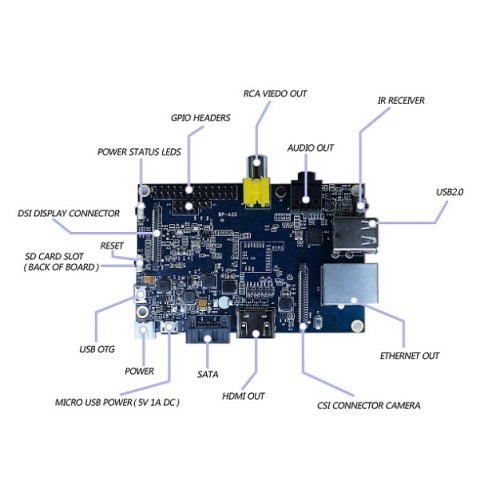

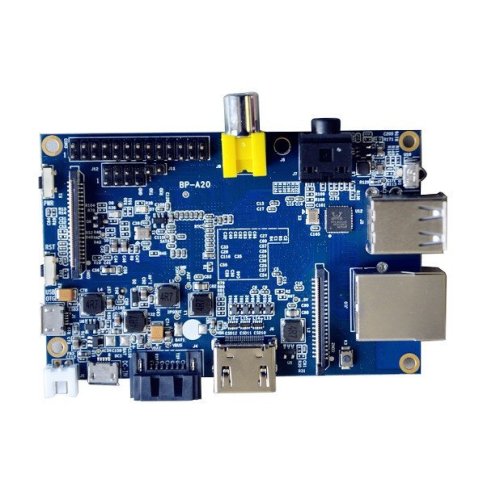

The Banana Pi BPI-M1 is a business card-sized and low-power single-board computer featuring a high performance AllWinner A20 dual-core SoC at 1 GHz, 1 GB of DDR3 SDRAM, Gigabit Ethernet, SATA, USB, and HDMI connections. It can run a variety of operating systems including Android, Lubuntu, Ubuntu, Debian, and Raspbian.
It is the first open source hardware launched by the banana pie team, and also a classic product with the largest cumulative sales of banana pie.There are still a lot of business clients that apply to various projects.A20 chip
Banana Pi is an open platform device, it is for anyone who wants to play and build with developer technology instead of simply using consumer technology. Backed by our community, starting a project and building servers is fun and rewarding.
Key Features:
- Allwinner A20 Dual-core 1.0GHz
- Mali-400 MP2 with Open GL ES 2.0/1.1
- 1 GB DDR3 memory
- SATA interface
- Gigabit Ethernet
- CPU: A20 ARM Cortex -A7 Dual-Core
- GPU: ARM Mali400MP2Complies with OpenGL ES 2.0/1.1
- Memory: 1GB DDR3
- Storage: External TF card
- Network: 10/100 Mbit/s Ethernet
- Video Output:
- HDMI port and multi-channel audio output
- LVDS
- Audio Output: 3.5mm jack and HDMI
- USB ports: 2 x USB 2.0 ports
- GPIO:
- Power (+5V, +3.3V and GND)
- UART, I2C, SPI or PWM
- Power Input: 5V/2A via Micro USB
- Size & Weight: 92x60mm, 48g
- OS: Android and Linux
Documents:
Package Includes:
- 1 x Banana Pi M1
| Processor Specifications | |
| Memory | 1 GB DDR3 |
| Processor | Allwinner A20 |
| Operating System (OS) | Android and Linux |
| Number of Cores | Dual-core |
| Speed | 1.0GHz |
| GPU | Mali-400 MP2 with Open GL ES 2.0/1.1 |
| Board Specifications | |
| GPIO | Power (+5V, +3.3V and GND), UART, I2C, SPI or PWM |
| Connectivity | |
| USB | 2 x USB 2.0 ports |
| Ethernet | 10/100 Mbit/s Ethernet |
| Electrical Specifications | |
| Input Power | 5V/2A via Micro USB |
WhatsApp
Banana Pi M1
- Brand:: Banana Pi ®
- Product Code: :Banana-Pi-M1-A20-Dual-Core
- Reward Points: :48
- Availability: :Back-order
-
रo 4,890.00
- Price in reward points: 4890
